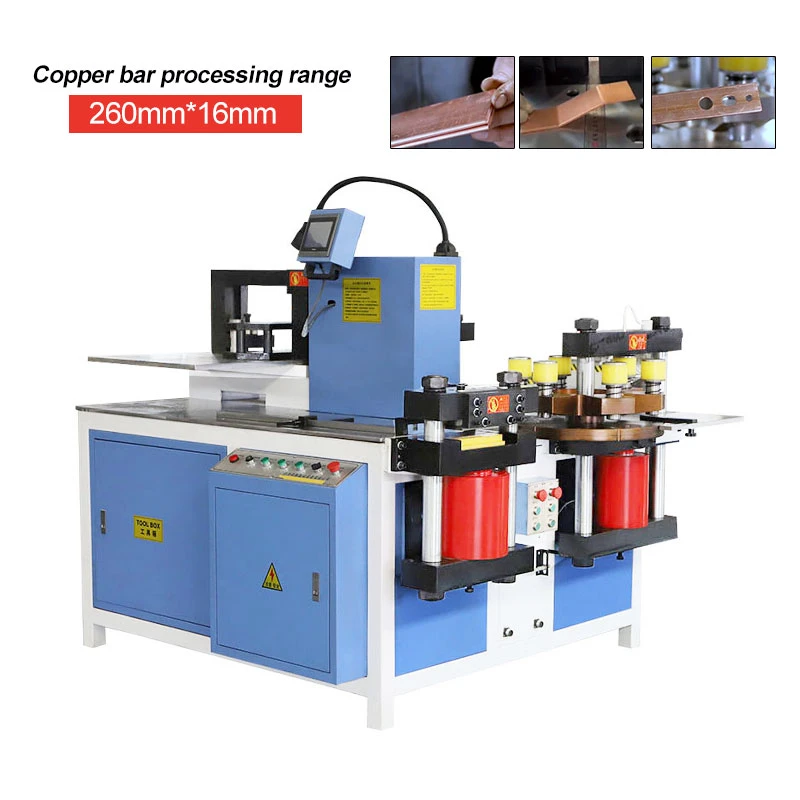

Zoo siab Busbar Cnc dabtsi yog khoov tshuab Busbar Txhawb Customization
DSMX-503esk-b, CNC tsheb npav dabtsi yog khoov xuas nrig ntaus thiab txiav tshuab, nrog peb ua
cov haujlwm ua haujlwm ib txhij tsis cuam tshuam rau ib leeg. Lub bending unit adopts
Siemens PLC los ntawm lub teb chaws Yelemees thiab txhawb cov qauv customized.
Lub Main Function
Punching, txiav, tiaj tiaj, dabtsi yog khoov, Embossing, U-khoov, Rov qab FlatChamfer,Twist Khoov, Compression Cable End
Khoom parameters
|
Busbar Tshuab Model
|
DSMX-503ESK-B
|
|
|
xuas nrig ntaus
|
Max.Puncing Force (KN)
|
500
|
|
Punching Txoj kab uas hla (MM)
|
Ø4.3-Ø36
|
|
|
Max. Thickness (MM)
|
16
|
|
|
Max. Dav (MM)
|
260
|
|
|
Txiav /
Txiav
|
Max Shearing Thickness (KN)
|
16
|
|
Max. Shearing dav (MM)
|
260
|
|
|
Max. Bending Force (KN)
|
800
|
|
|
Vertical Bending
|
Max. Thickness (MM)
|
10
|
|
Max. Dav (MM)
|
100
|
|
|
Kab rov tav Bending
|
Max. Dav (MM)
|
16
|
|
Max. Dav (MM)
|
260
|
|
|
Twisting dabtsi yog khoov
|
Max. Thickness (MM)
|
16
|
|
Max. Dav (MM)
|
260
|
|
|
Tawm Dimension
|
Tawm Dimension
|
1925*1560*1490
|
|
Hwj chim
|
Hwj chim
|
3x5 qw
|
|
CNC Precision
|
Khoov Precision
|
± 1 degree
|
|
Rov ua dua Bending Precision
|
± 0.3 degree
|
|
Khoom Paub meej
1.Cutting Uint: Ob chav-kem txiav qauv
Qhov chaw txiav txiav txais cov qauv ob-kab, txiav lub qhov ncauj tiaj tiaj tsis muaj pov tseg, tsis muaj qhov sib tsoo.
2.Bending Unit: Yooj yim thiab yooj yim rau kev khiav lag luam
Lub tsev khoov tau txais kev ua haujlwm anindependentworkbench, thiab peb qhov kev ua haujlwm ua haujlwm tib lub sijhawm yam tsis muaj kev cuam tshuam txog kev ua haujlwm ntawm lub tiaj bending thiab verticalbending tuaj yeem ua tiav los ntawm kev hloov cov tuag.

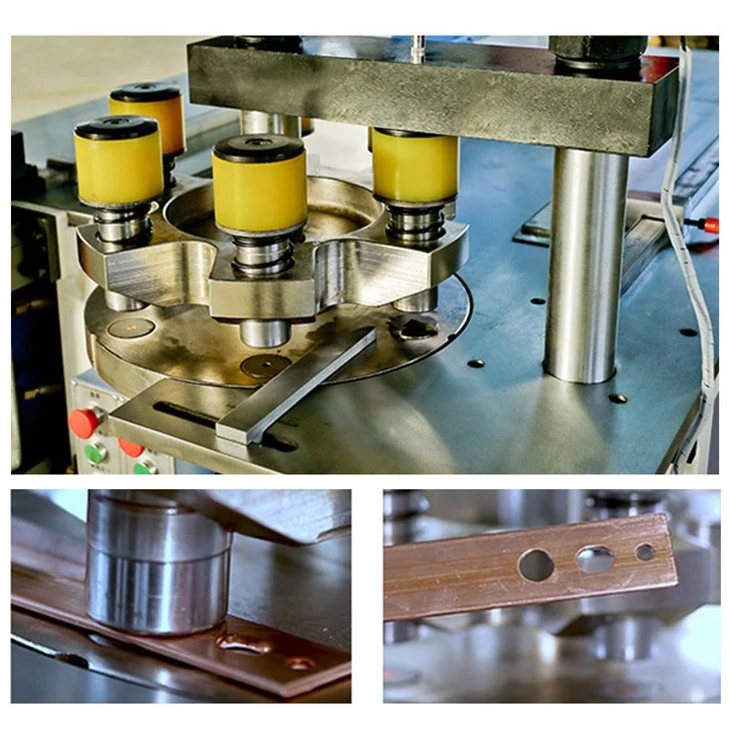

3.Punching Unit: Nodular cam khwb cia hlau khoom
Lub tshuab xuas nrig ntaus txais yuav atoothedsix-txoj hauj lwm ib qho turntable uas muaj ib txoj kab zoo ntawm qhov pom, siab zog qhov chaw, thiab xuas nrig ntaus tsis muaj offsetthere tsis tas yuav hloov lawv ntau zaus, txhim kho kev ua haujlwm thiab siv yooj yim dua thiab sai dua.
4. Txais CNC Siemens PLC system
1. Kov cov xim xim, qhov kev khoov dav dav tuaj yeem txuag tau.
2. Tsuas yog yuav tsum tau input lub thickness thiab dav ntawm tooj liab busbar, busbar tshuab yuav khiav automaticlly.
3. Txuag cov ntaub ntawv, fais fab tuag nco.
4. Multilanguage system: Busbar Tshuab txhawb lus Askiv, Mev, Portuguese, Lavxias, thiab lwm yam.
1. Kov cov xim xim, qhov kev khoov dav dav tuaj yeem txuag tau.
2. Tsuas yog yuav tsum tau input lub thickness thiab dav ntawm tooj liab busbar, busbar tshuab yuav khiav automaticlly.
3. Txuag cov ntaub ntawv, fais fab tuag nco.
4. Multilanguage system: Busbar Tshuab txhawb lus Askiv, Mev, Portuguese, Lavxias, thiab lwm yam.
Zoo siab Busbar Cnc dabtsi yog khoov tshuab Busbar Txhawb Customization
Cov qauv khoom
DESG busbar processing tshuab qauv zaub:
Lub luag haujlwm tseem ceeb yog ua cov tooj liab thiab txhuas busbar nyob rau hauv ntau yam specifications. Los ntawm cov chaw ua haujlwm txheeb ze, nws tuaj yeem ua alkinds ntawm kev ua rau tooj liab thiab txhuas busbar sai thiab yooj yim, xws li shearing / txiav punching (lub qhov thiab oblong qhov), tiaj / kab rov tav dabtsi yog khoov, ntsug dabtsi yog khoov U-bending, embossing ca nias, twisting cable connectorprocessing etc.Multifunctional Cnc Busbar Processing Tshuab Busbar dabtsi yog khoov tshuab.
Lub luag haujlwm tseem ceeb yog ua cov tooj liab thiab txhuas busbar nyob rau hauv ntau yam specifications. Los ntawm cov chaw ua haujlwm txheeb ze, nws tuaj yeem ua alkinds ntawm kev ua rau tooj liab thiab txhuas busbar sai thiab yooj yim, xws li shearing / txiav punching (lub qhov thiab oblong qhov), tiaj / kab rov tav dabtsi yog khoov, ntsug dabtsi yog khoov U-bending, embossing ca nias, twisting cable connectorprocessing etc.Multifunctional Cnc Busbar Processing Tshuab Busbar dabtsi yog khoov tshuab.
Khoom siv
Feem ntau yog siv rau kev ua ntau hom tooj liab thiab txhuas tuav xws li siab thiab qis voltage switchgear, hluav taws xob keyboards, chassis khoom, substations, transformers, loj bus ducts, etc.three-chaw nres tsheb cnc busbar txiav punching dabtsi yog khoov tshuab rau tooj liab.
Tuam txhab Profile
Jinan Deshang CNC Equipment Co., Ltd. yog lub chaw tsim khoom ntawm busbar ua cov cav tov, tooj liab thiab txhuas kab ua cov cav tov, thiab cov khoom siv busway ua. Nws muaj 15 xyoo ntawm kev tsim khoom, kev paub tab technology, siab tso zis, ceev ceev, thiab lav kev pab cuam tom qab muag. Peb cov khoom muaj ISO9001 thiab CE daim ntawv pov thawj zoo thiab SGS ntawv pov thawj los coj cov neeg siv khoom xaj. Tib lub sijhawm, DESG kuj lees txais OEM lossis ODM xaj, qhov tsawg kawg nkaus txiav txim kom muaj nuj nqis yog ib txheej.
Cov khoom ntim
High quality Busbar Cnc dabtsi yog khoov tshuab Busbar SupportCustomization
Standard ntshuam thiab export ntoo thawv ntim, dawb los ntawm fumigation thiab xeb tiv thaiv kev kho mob.
FAQ
1.Koj cov nqe lus them nqi yog dab tsi?
40% T / T tso nyiaj, 60% tshuav nyiaj them ua ntej thauj khoom tom qab npaj tau zoo.
2. Koj lub sijhawm xa khoom yog dab tsi?
Hauv 15 hnub ua haujlwm tom qab koj tso nyiaj.
3. Koj lub hwj chim yog dab tsi?
Peb tuaj yeem kho nws raws li koj lub teb chaws fais fab mov.
4. Koj qhov kev txiav txim Min yog dab tsi?
Ib txheej.
5. Puas yog tag nrho cov ntawv sau thiab cov lus qhia ntawm lub tshuab ua lus Askiv?
Yog lawm. Cov ntawv sau rau ntawm lub tshuab thiab phau ntawv phau ntawv yog Sau ua lus Askiv.
6. Dab tsi lwm yam busbar ua cov cav tov uas peb muab?
Peb muab koj ntau txoj kev xaiv:
Busbar winding tshuab, busbar chamfering tshuab, tooj liab phaj leveling tshuab, portable busbar ua tshuab, busbar tej cuab yeej, busbar dabtsi yog khoov cov cuab yeej, busbar xuas nrig ntaus cov cuab yeej, hydraulic twj tso kua mis, tes twj tso kua mis, thiab lwm yam.
