CNC Busbar Tej Tshuab
Muaj nuj nqi: Txiav, Dabtsi Yog Khoov, Xuas Nrig Ntaus
Qhov siab tshaj plaws: 15mm
Qhov siab tshaj plaws: 160mm
Lub Cev Muaj Zog: 3 × 4KW
Hauj lwm lawm
Khoom Paub meej

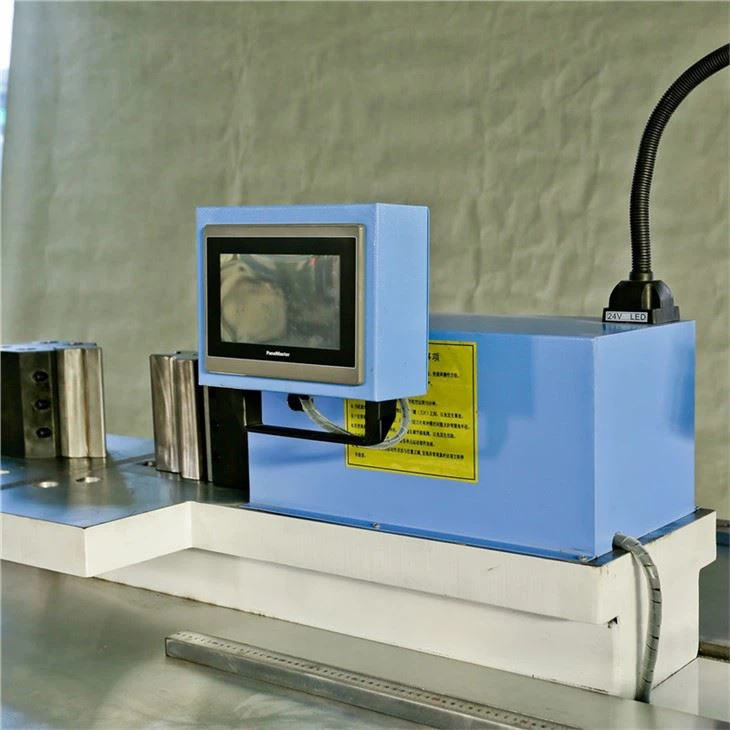

DS-303SK-B Copper busbar tej tshuab
Cov tshuab CNC busbar ua tshuab no muaj peb chav: xuas nrig ntaus, txiav thiab khoov. Nws yog qhov yooj yim los kho txhua chav kom luv lub sijhawm ua haujlwm thiab txhim kho kev ua haujlwm tau zoo. Chav khoov siv lub PLC tswj qhov kev tuaj txawv teb chaws, uas muaj cov txheej txheem ruaj khov thiab muaj qhov tseeb. Nws yog siv los txheej txheem tooj liab thiab txhuas busbars hauv qhov sib txawv tshwj xeeb. Los ntawm cov chaw ua haujlwm txheeb ze yog tuaj yeem yooj yim thiab sai ua txhua yam kev ua rau tooj liab thiab txhuas busbar, xws li txiav, xuas nrig (ncig lub qhov thiab oblong qhov), tiaj/ncaj ncaj dabtsi yog khoov, ntsug dabtsi yog khoov thiab knurling. Hloov cov pwm sib txawv los ua cov txheej txheem tshwj xeeb rau tooj liab tooj liab, xws li xovxwm tiaj tus, embossing, txheej txheem txheej txheem txuas, thiab tuaj yeem txiav, tiaj tiaj, thawb, thiab khoov.
Daim Ntawv Thov Khoom
 |  |
Khoom Parameter
Qauv Tsis. | DS-303SK-B | |
Xim | Xiav | |
Punch | Max. Punch Force | 300kn ua |
Punch Diameter | .34.3 - ∅30 hli | |
Max. Thickness | 15 hli | |
Max. Dav | 160 hli | |
Txiab Txiav | Max. Txiav Force | 500kn ua |
Max. Txiav Thickness | 15 hli | |
Max. Txiav Dav | 160 hli | |
Kab rov tav khoov | Max. Punch Force | 300kn ua |
Max. Thickness | 15 hli | |
Max. Dav | 160 hli | |
Ntsug khoov | Max. Dav | 10 x 100 |
Max. Lub (Degree) | 90° | |
Qhov ntev | MM | 1890*1350*1400 hli |
Lub zog Moteur | KW | 3*4 |
Qhov hnyav | KG | 1300 |
CNC Precision | Khoov Precision | ±1° |
Rov Ua Dua Khoov Dua | ±0.2° | |
Accessories | Ntau npaum li cas | |
Xuas nrig tuag | 8 poob lawm | |
Kab rov tav khoov tuag | 2 poob lawm | |
Txiav riam | 1 teeb | |
Cov khoom siv tshwj xeeb | 1 teeb | |
Hloov taw | 3 poob lawm | |
Embossing tuag | 1 teeb | |
Luam theej duab | 1 teeb | |
Standby sib thooj hloov | 1 teeb | |
Cov cuab yeej tu | 1 teeb | |
Qib Foundation | 4 set ua | |
Ntsug dabtsi yog khoov tuag | 1 teeb | |
Xuas nrig qhov chaw koob/teeb | 1 teeb | |
Qhov Zoo ntawm Kev Xaiv
1. Lub Cev Muaj Zog: Juli Weite (lub ntim xa tawm ua ntej hauv lub tebchaws), 100% tooj liab lub cev muaj zog, lub cav no muaj qhov zoo ntawm kev ruaj ntseg zoo, tsis muaj suab nrov thiab tsis ua haujlwm tsawg.
2. Roj twj tso kua mis: Taiwan Xinhong Tsav (tus nqi yog kwv yees li 700 siab dua li lub cev muaj zog hauv tsev). Peb cov twj tso kua mis yog cov twj tso kua roj iav, thiab ntau lwm cov tuam ntxhab yog cov twj tso kua mis.
3. Lub solenoid valve overflow valve yog tsim los ntawm Taiwan, nrog kev sib khi zoo thiab lub neej ntev.
4. Hydraulic tubing ntsaws ruaj ruaj: peb txheej steel hlau siab-tubing.
5. Roj tank: Cov phaj hlau welded nrog kho phosphating sab hauv muaj qhov ua tau zoo tiv thaiv xeb.
6. Pwm: Qhov xuas nrig ntaus thiab txiav cov pwm yog ua los ntawm Luo 12 molybdenum thiab vanadium khoom kom ntseeg tau tias kev pab lub neej ntawm cov pwm. Txhua qhov chaw khoov siv 45# cov ntaub ntawv forging, quenching kho cua sov, kho flange, ua tiav cov cuab yeej siv thev naus laus zis thiab cov ntaub ntawv txhim khu kev qha, yog li koj yuav tsis muaj kev txhawj xeeb hauv kev siv yav tom ntej.
7. Punching positioning: X, Y axis thim rov qab qhov chaw, ua haujlwm tau zoo, raug siab, tsim nyog rau ntau lawm.
8. Cov duab ntawm cov cuab yeej tau txau nrog yas, tsis zoo li cov tshuaj tsuag tsuag.
9. Tag nrho lub tshuab txais Panasonic PLC tswj, uas muaj kev ruaj khov thiab ntseeg tau ntau dua li kev tswj hwm ib txwm muaj. Dabtsi yog khoov lub kaum ntse ntse ncaj qha, kev ua haujlwm yog yooj yim, lub kaum sab xis yog qhov tseeb thiab suav nrog kev ua haujlwm nco, thiab cov txheej txheem ua haujlwm raug xaiv raws li xav tau.
