Tooj Busbar Tej Tshuab
Qhov ntev: 1925*1560*1490mm
Muaj nuj nqi: Txiav, Dabtsi Yog Khoov, Xuas Nrig Ntaus
Qhov siab tshaj plaws: 16 hli
Dav dav tshaj: 260mm
Ntev: kho
Lub Cev Muaj Zog: 3 × 5.5KW
Tshuab hnyav: 1950KG
Hauj lwm lawm
Khoom Paub meej

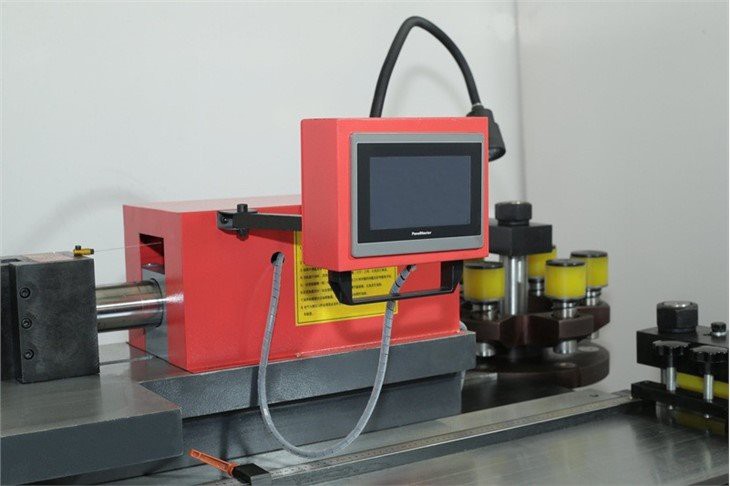

DS-503SK-B Copper busbar txiav tshuab muaj peb lub luag haujlwm: txiav, xuas nrig ntaus thiab khoov.
-Txhua haujlwm tuaj yeem ua haujlwm tib lub sijhawm.
-Qhov chaw txiav txiav tau txais ob kab ntawv txiav txiav tuag, qhov kev sib txuas ntawm lub ntsej muag yog tiaj tus, tsis muaj burrs thiab droop.
-Cov xuas nrig ntaus tuag txais yuav rau-hom turnplate yog li tsis tas yuav hloov qhov xuas nrig ntaus tuag ntau zaus.
-Cov tsev khoov tau txais kev teeb tsa kom nws yooj yim los xaiv peb cov tooj liab tooj liab ua tiav.
-Cov tshuab CNC txais Siemens PLC thiab khoov lub kaum sab xis yog tswj tau.
Daim Ntawv Thov Khoom

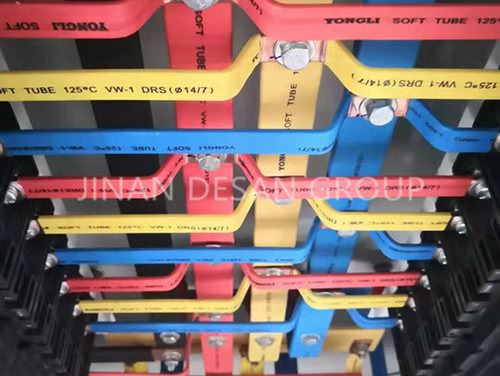

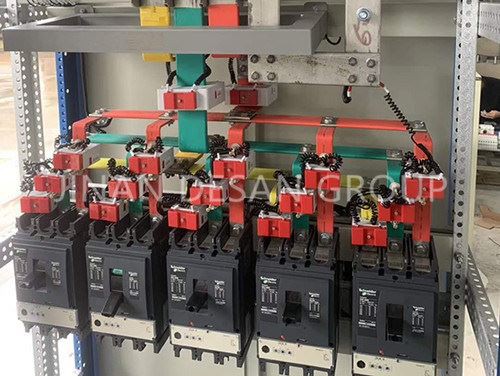

Lub hom phiaj tseem ceeb ntawm kev siv lub tsheb npav yog tsim rau siab thiab qis voltage switchgear, siab thiab qis voltage ua tiav cov teeb tsa, hloov hluav taws xob thiab lwm yam kev lag luam tsim khoom.
 |  |
Khoom Parameter
Qauv Tsis. | DS-503SK-B | |
Xim | Grey | |
Punch | Max. Punch Force | 500kn ua |
Punch Diameter | .34.3 - ∅36 hli | |
Max. Thickness | 16 hli | |
Max. Dav | 260 hli | |
Txiab Txiav | Max. Txiav Force | 800kn ua |
Max. Txiav Thickness | 16 hli | |
Max. Txiav Dav | 260 hli | |
Kab rov tav khoov | Max. Punch Force | 500kn ua |
Max. Thickness | 16 hli | |
Max. Dav | 260 hli | |
Ntsug khoov | Max. Dav | 10 x 100 |
Max. Lub (Degree) | 90° | |
Qhov ntev | MM | 1925*1560*1490 hli |
Lub zog Moteur | KW | 3*5.5 |
Qhov hnyav | KG | 1950 |
CNC Precision | Khoov Precision | ±1° |
Rov Ua Dua Khoov Dua | ±0.2° | |
Cov Ntsiab Lus Avantage
1. Lub cev muaj zog ywj pheej: 3 lub chaw nres tsheb ua haujlwm tib lub sijhawm, zam kev tsav lub cev puas tsuaj los ntawm kev ua haujlwm ntau dhau.
2. Kev tiv thaiv hluav taws xob: Kev tshuaj xyuas lub sijhawm tiag tiag ntawm lub tshuab ua haujlwm, kev siv lub zog tsis siv neeg tiv thaiv lub cav thiab lwm yam khoom tseem ceeb.
3. Kev ua kom ntev: Cov khoom siv hluav taws xob ntawm Siemens, Schneider thiab lwm yam khoom lag luam loj yog cov khoom ruaj khov thiab zam kev laus ntawm kev siv hluav taws xob thiab ua rau luv luv ntawm lub tshuab.
Peb Qhov Kev Pabcuam
1. Koj cov nqe lus them nqi yog dab tsi?
40% T/T tso nyiaj, 60% tshuav nyiaj yuav tsum tau them ua ntej thauj khoom tom qab npaj tau zoo.
2. Koj lub sijhawm khoom xa tuaj yog dab tsi?
Hauv 45 hnub ua haujlwm tom qab koj them nyiaj.
3. Koj lub hwj huam mov yog dab tsi?
Nws yuav vam khom koj lub hwj chim hauv cheeb tsam thiab peb yuav kho rau koj.
4. Koj qhov kev txiav txim yam tsawg kawg nkaus yog dab tsi?
Ib txheej.
Cim npe nrov: tooj liab busbar txiav tshuab, cov chaw muag khoom, chaw tsim khoom, thawj tus nqi, OEM Hoobkas, kev muag khoom
