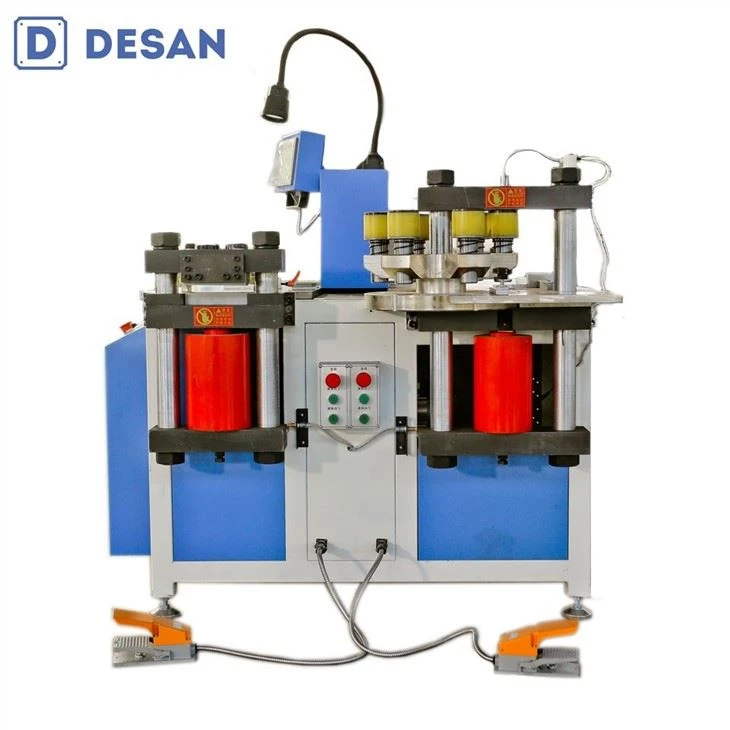

3 nyob rau hauv 1 CNC Busbar Punching Bending Utting Equipment

DESAN CNC Equipment Co., Ltd.

Qauv No.:DS-303SK-B

Desan Busbar ua tshuab muajxuas nrig ntaus, TxiavthiabKhoov chaw nres tsheb.Nws tuaj yeem ua tiavtoojlos yogaluminium yooj yim. Peb lub chaw nres tsheb no kuj tuaj yeem ua haujlwm tib lub sijhawm.

Muaj nuj nqi

1. xuas nrig ntaus

2. Txiav

▶We use sharp shearing. So the interface is really flat without droops burrs or any waste.

3. Khoov

Peb lub kaum sab xis ntawm dabtsi yog khoov chaw nres tsheb yog tswj los ntawm kev koom tes ntawm PLC thiab hloov chaw sensor. Nws kuj muaj kev ua haujlwm ntawm kev nco thiab kev ua yuam kev uas ua kom qhov tseeb thiab lub kaum sab xis ntawm kev khoov.

Technical Parameters

Muaj nuj nqi		Yam khoom			DS -303SK-B
xuas nrig ntaus		Max. Punching Force			300 KN
		Punching Txoj kab uas hla			ф4.3mm-ф30mm
		Max. Thickness			15 hli
		Max dav			160 hli
Txiav		Max. Txiav quab yuam			500 KN
		Max. Txiav Thickness			15 hli
		Max. Txiav Dav			160 hli
Khoov		Kab rov tav Bending		Max Bending  quab yuam	300 KN
				Max  Thickness	12 hli
				Max  Dav	150 hli
		Vertical Bending		Max Bending  quab yuam	300 KN
				Max  Thickness	10 hli
				Max dav	100 hli
Tawm dimension				1890mm 1350mm 1400mm
Lub cev muaj zog				34 kWm
Qhov hnyav				1300 Kg
Hais txog CNC	Peb siv Siemens PLC tswj uas koj tuaj yeem nkag mus rau lub kaum ntse ntse.  The bending precision is ±1 degree and repeat bending precision ±0.5 degree . Three stations can be work at the same time.  You also can only enter item's height ad width to produce the item you need.(as Z type blending)

Sample Shows Accessories

Tuam txhab Profile

Jinan Deshang CNC Equipment Co., Ltd. is a technology-based enterprise dedicated to the development and production of electrical equipment and CNC sheet metal equipment. We are the most professional busbar processing mechanism manufacturer and exporter in China.

Nrog 102 tus kws ua haujlwm ua haujlwm, 12 tus tsim qauv, 22 tus neeg ua haujlwm hauv tsev lag luam, 10 tus neeg ua haujlwm txawv teb chaws thiab 5 tus kws tshaj lij xa tawm. Los ntawm peb cov kev siv zog, peb tau txais daim ntawv pov thawj CE thiab ISO 9001 daim ntawv pov thawj, thiab tau txais kev pom zoo patents thiab cov qauv siv hluav taws xob patents.

FAQ

1. What is your payment terms?

40 feem pua ​​​​T / T tso nyiaj, 60 feem pua ​​​​ntawm cov nyiaj them poob haujlwm ua ntej thauj khoom tom qab npaj tau zoo.

2. What is your delivery time?

Hauv 45 hnub ua haujlwm tom qab koj them nyiaj.

3. What is your power supply?

Nws yuav nyob ntawm koj lub zog hauv zos thiab peb yuav kho rau koj.

4. What is your minimum order quantity?

Ib txheej.

5. Are the all labels and instructions English?

Yog lawm. Peb cov ntawv sau, cov lus qhia thiab kev tswj hwm yog tag nrho cov lus Askiv.
