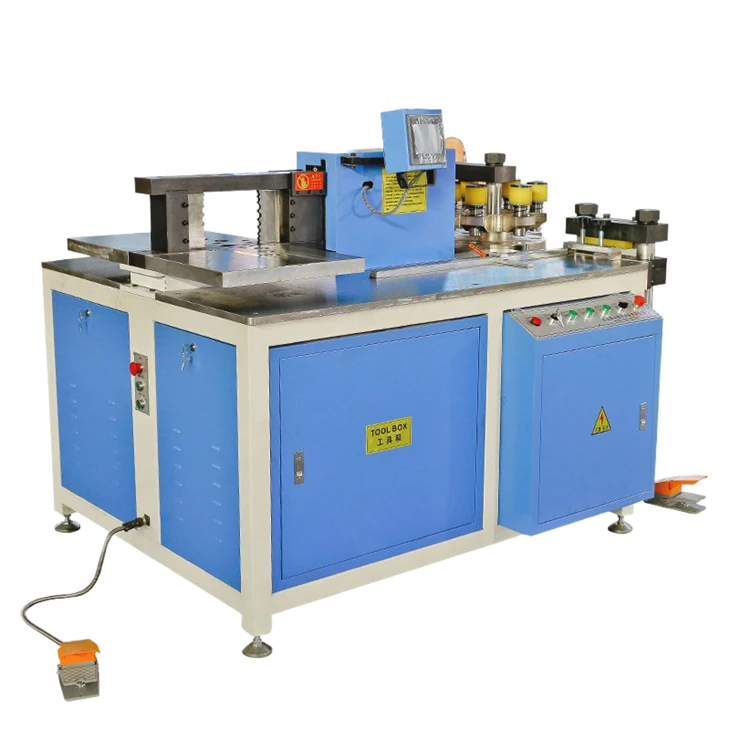

Multifunctional 3 Hauv 1 Busbar Ua Tshuab
Qhov zoo ntawm Dsmx-503esk-b Cnc Busbar Machining Tshuab yog tias peb txoj haujlwm machining tuaj yeem ua haujlwm ib txhij, punching, dabtsi yog khoov, thiab shearing yuav tsis cuam tshuam rau ib leeg. Chav tsev txais Siemens Cnc System los ntawm lub teb chaws Yelemees, nrog kev ua haujlwm siab tshaj plaws ntawm 16 hli thiab qhov ua tiav siab tshaj plaws ntawm 260mm. Cov Khoom Loj: 1925 * 1560 * 1490mm.
Hauj lwm lawm
Qhov zoo ntawm Dsmx-503esk-b Cnc Busbar Machining Tshuab yog tias peb txoj haujlwm machining tuaj yeem ua haujlwm ib txhij, punching, dabtsi yog khoov, thiab shearing yuav tsis cuam tshuam rau ib leeg. Chav tsev txais Siemens Cnc System los ntawm lub teb chaws Yelemees, nrog kev ua haujlwm siab tshaj plaws ntawm 16 hli thiab ua tiav siab tshaj plaws ntawm 260mm, Multifunctional 3 Hauv 1 Busbar Processing Tshuab
Muaj nuj nqi:
Punching: puag ncig lub qhov xuas nrig ntaus, elongated qhov xuas nrig ntaus, square qhov punching, tooj liab pas nrig xuas nrig ntaus
Txiav: dav hlau txiav, ntug txiav, R kaum txiav
Bending: L-khoov, U-khoov, Z-khoov, twist, flatten, tsis muaj indentation, xovxwm cable, nias tooj liab pas nrig, quav tooj liab pas nrig.
Cov khoom siv no siv peb qhov chaw ua haujlwm: 1. Txiav 2. Punching 3. dabtsi yog khoov
Khoom parameters
|
Busbar Tshuab Model
|
DSMX-503ESK-B
|
|
|
xuas nrig ntaus
|
Max.Puncing Force (KN)
|
500
|
|
Punching Txoj kab uas hla (MM)
|
Ø4.3-Ø36
|
|
|
Max. Thickness (MM)
|
16
|
|
|
Max. Dav (MM)
|
260
|
|
|
Txiav /
Txiav
|
Max Shearing Thickness (KN)
|
16
|
|
Max. Shearing dav (MM)
|
260
|
|
|
Max. Bending Force (KN)
|
800
|
|
|
Vertical Bending
|
Max. Thickness (MM)
|
10
|
|
Max. Dav (MM)
|
100
|
|
|
Kab rov tav Bending
|
Max. Dav (MM)
|
16
|
|
Max. Dav (MM)
|
260
|
|
|
Twisting dabtsi yog khoov
|
Max. Thickness (MM)
|
16
|
|
Max. Dav (MM)
|
260
|
|
|
Tawm Dimension
|
Tawm Dimension
|
1925*1560*1490
|
|
Hwj chim
|
Hwj chim
|
3x5 qw
|
|
CNC Precision
|
Khoov Precision
|
± 1 degree
|
|
Rov ua dua Bending Precision
|
± 0.3 degree
|
|
Khoom Paub meej
▶ Punching Unit: Nodular cam khwb cia hlau materia
Lub tshuab xuas nrig ntaus txais yuav atoothed rau-txoj hauj lwm ib qho turntable uas muaj ib txoj kab zoo
Lub tshuab xuas nrig ntaus txais yuav atoothed rau-txoj hauj lwm ib qho turntable uas muaj ib txoj kab zoo
ntawm pom, highstrengthaccurate positioning, thiab meej xuas nrig ntaus yam tsis muaj offsetthere yog
tsis tas yuav hloov lawv ntau zaus, txhim kho kev ua haujlwm thiab siv yooj yim dua thiab nrawm dua.
▶ Txiav Uint: Muab ob npaug rau-kab txiav cov qauv
Lub chaw txiav txiav txais cov qauv ob-kab, txiav lub qhov ncauj tiaj tus tsis muaj pov tseg,
Lub chaw txiav txiav txais cov qauv ob-kab, txiav lub qhov ncauj tiaj tus tsis muaj pov tseg,
tsis muaj buns, tsis muaj collapseangles.
▶ Bending Unit: Yooj yim thiab yooj yim rau kev khiav lag luam
Lub tsev khoov tau txais kev ua haujlwm tsis txaus ntseeg, thiab peb qhov ua haujlwm ua haujlwm
Lub tsev khoov tau txais kev ua haujlwm tsis txaus ntseeg, thiab peb qhov ua haujlwm ua haujlwm
nyob rau tib lub sij hawm yam tsis cuam tshuam ib leeg Kev ua ntawm ca dabtsi yog khoov thiab
verticalbending tuaj yeem ua tiav los ntawm kev hloov cov tuag.
Scope ntawm daim ntawv thov
Copper busbar processing machines yog dav siv nyob rau hauv switchgear, hluav taws xob tswj vaj huam sib luag, siab thiab tsis tshua muaj voltage switchgear, substations, voltage transformers, hluav taws xob keyboards, shipbuilding, hluav taws xob elevator manufacturing, hluav taws xob txee tsim, thiab faib khoom tsim khoom.
Tuam txhab Profile
Jinan Deshang CNC Equipment Co., Ltd. yog lub chaw tsim khoom ntawm busbar
ua tshuab, tooj liab thiab txhuas kab ua tshuab, thiab busway
cov khoom siv ua haujlwm. Nws muaj 15 xyoo ntawm kev tsim khoom, paub tab technology,
siab tso zis, xa khoom sai, thiab lav kev pab cuam tom qab muag. Peb cov khoom muaj
ISO9001 thiab CE daim ntawv pov thawj zoo thiab SGS daim ntawv pov thawj los coj cov neeg siv khoom xaj.
Tib lub sijhawm, DESG kuj lees txais OEM lossis ODM xaj, qhov tsawg kawg nkaus txiav txim kom muaj nuj nqis yog ib txheej.
DESG cov khoom lag luam muaj xws li: peb-hauv-ib lub tshuab ua haujlwm busbar, mobile busbar
ua tshuab, cov cuab yeej busbar thiab lwm yam khoom siv, ua kom yooj yim rau cov neeg siv
xaiv lub tshuab tsim nyog tshaj plaws rau lawv txoj haujlwm, yog li peb cov khoom siv tuaj yeem ntsib cov neeg siv khoom '
cov kev cai rau kev tsim txhuas thiab Txhua daim ntawv thov scenarios ntawm tooj liab busbars
yuav tsum tau. Machining raug yog cov yam ntxwv tseem ceeb tshaj plaws ntawm cov khoom siv, thiab
DESG cov cav tov yog qhov tseeb heev hauv kev txiav, xuas nrig ntaus thiab tshwj xeeb yog dabtsi yog khoov, uas yog
raws nraim lub caij ntawm precision uas cov neeg siv ntawm hom tshuab no tab tom nrhiav.
DESG yog ib lub npe nrov busbar tshuab manufacturers hauv Suav teb. Nws busbar
tshuab cov khoom siv dav siv hauv busbar ua machinery, siab thiab qis
voltage switchgear, substations, busway, txuas hniav, hluav taws xob hloov, kev sib txuas lus
khoom siv, khoom siv hauv tsev, nkoj tsim, khoom siv hauv chaw ua haujlwm automation, of elevator
kev tsim khoom, txee tsim khoom thiab lwm yam khoom siv hluav taws xob Ua tiav kev tsim khoom.
Tam sim no, DESG vam tias yuav ntxiv kev sib koom ua lag luam thiab cov khoom muag, yog li nws vam tias yuav tsim
ib lub sij hawm ntev thiab ruaj khov kev sib raug zoo nrog cov neeg sawv cev uas txaus siab rau kev koom tes.
Cov khoom ntim
Multifunctional 3 Hauv 1 Busbar Ua Tshuab
FAQ
1.Koj cov nqe lus them nqi yog dab tsi?
40% T / T tso nyiaj, 60% tshuav nyiaj them ua ntej thauj khoom tom qab npaj tau zoo.
2. Koj lub sijhawm xa khoom yog dab tsi?
Hauv 15 hnub ua haujlwm tom qab koj tso nyiaj.
3. Koj lub hwj chim yog dab tsi?
Peb tuaj yeem kho nws raws li koj lub teb chaws fais fab mov.
4. Koj qhov kev txiav txim Min yog dab tsi?
Ib txheej.
5. Puas yog tag nrho cov ntawv sau thiab cov lus qhia ntawm lub tshuab ua lus Askiv?
Yog lawm. Cov ntawv sau rau ntawm lub tshuab thiab phau ntawv phau ntawv yog Sau ua lus Askiv.
6. Dab tsi lwm yam busbar ua cov cav tov uas peb muab?
Peb muab ntau yam kev xaiv rau koj: Busbar winding tshuab, busbar chamfering tshuab, tooj liab phaj leveling tshuab, portable busbar ua tshuab, busbar tej cuab yeej, busbar dabtsi yog khoov cuab yeej, busbar xuas nrig ntaus cov cuab yeej, hydraulic.
