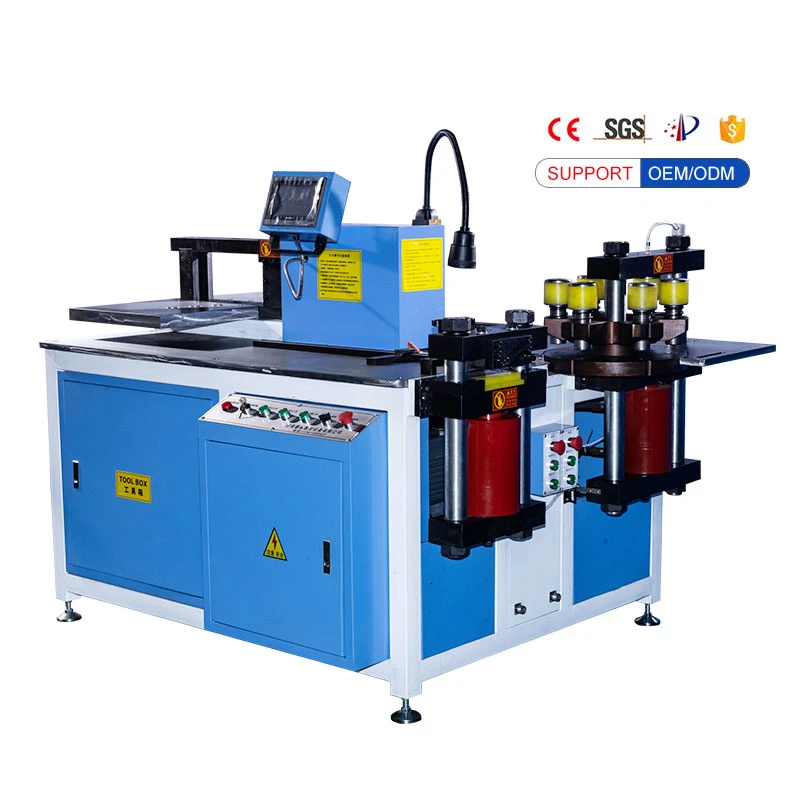

Busbar Punching Thiab Dabtsi Yog Khoov Tshuab
Excellent design of the punching unitAs the core part, the punching unit adopts a six-mode turntable design (it can also be customized with four or eight modes according to the special needs of customers). Tus qauv turntable no tau ua tib zoo tsim thiab tsim kom ntseeg tau tias cov pwm sab saud thiab qis dua nyob hauv qhov chaw ua haujlwm. Qhov kev sib koom ua ke ntawm cov khoom siv sib txawv ntawm kev xuas nrig ntaus pob, zam kev sib tw ntawm cov pwm ua haujlwm los ntawm cov pwm offset, thiab lays lub hauv paus rau cov zis zoo ntawm busbar ua.
Hauj lwm lawm
Punching Mould rau Busbar Tshuab
Lub tshuab busbar ua ntau lub zog, suav nrog xuas nrig ntaus, shearing thiab khoov.
Qhov ntsuas kev ua haujlwm ntawm busbar punching thiab dabtsi yog khoov tshuab tau nqa cov kev ua haujlwm siab thiab precision rau ntau hom kev ua haujlwm busebar nrog nws cov kev ua tau zoo thiab tsim. Tom ntej no, cia tshawb nrhiav cov subtleties ntawm punching txuas.
1. Zoo tsim ntawm xuas nrig ntaus ib pawg
Raws li qhov tseem ceeb ntawm ib feem, cov Punching Adopts adopts tsim (nws kuj tseem tuaj yeem ua nrog plaub lossis yim pwm raws li cov neeg siv khoom tshwj xeeb). Tus qauv turntable no tau ua tib zoo tsim thiab tsim kom ntseeg tau tias cov pwm sab saud thiab qis dua nyob hauv qhov chaw ua haujlwm. Qhov kev sib koom ua ke ntawm cov khoom siv sib txawv ntawm kev xuas nrig ntaus pob, zam kev sib tw ntawm cov pwm ua haujlwm los ntawm cov pwm offset, thiab lays lub hauv paus rau cov zis zoo ntawm busbar ua.
2. Kev yooj yim thiab cov pwm hloov kho kom zoo dua
Thaum ntsib qhov xwm txheej uas qhov ntau thiab tsawg qhov sib txawv ntawm qhov yuav tsum tau punched ntawm ib lub tshuab busbar, lub tshuab busebar qhia tau zoo. Tus neeg teb xov tooj tsis tas yuav ua cov khoom hloov ua haujlwm zoo nkauj. Nws tsuas yog xav tau kev khiav lag luam cov khoom siv thiab hloov cov pwm sib raug siv rau-hom tig tig los ua kom tau raws li lub apertures sib txawv. Cov qauv tsim no, uas tsis tas yuav hloov pwm, ua kom muaj kev pheej hmoo ntawm kev tsis ncaj ncees los ntawm cov pwm tsis sib thooj. Nyob rau tib lub sijhawm, nws txo cov pwm thauj khoom thiab lub sijhawm tsis muaj peev xwm, thiab yog li thauj khoom lub neej ntawm cov pwm, txuag tau cov nqi tsim khoom rau lub tuam txhab.
3.. Cov khoom siv pwm zoo tsim tau lub neej ntev
Qhov zoo tshaj ntawm punching pwm yog ncaj qha cuam tshuam nrog kev ua haujlwm ua haujlwm thiab ua qhov yog ntawm cov khoom siv. Cov pwm cov khoom siv hauv cov tshuab busebar ua yog cr12mov, uas muaj kev ua tau zoo heev. Ntawm ib sab tes, nws muaj cov khoom muaj zog zoo thiab tuaj yeem tswj hwm tus qauv pwm nyob hauv kev cuam tshuam ntau, zam kev puas tsuaj loj xws li tawg tawg; Ntawm qhov tod tes, nws lub siab tawv kom ntseeg tau tias ntug ntawm cov pwm tsis yooj yim hnav thaum siv tau ntev thiab ib txwm tseem ntse. Raws li qhov no, ib pawg punching moulds tuaj yeem ntaus tau ntau tshaj li 8, {}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}
4. Nplua thiab cov tswv yim xuas nrig ntaus txoj kev ua haujlwm cov khoom siv txheem
Txhawm rau kom tau raws li cov cav sib tw sib txawv, cov khoom siv Busebar yog nruab nrog 3 hom kev xaiv cov khoom siv txheem txheem txheem, txhua txoj kev muaj txiaj ntsig zoo thiab muaj cov xwm txheej muaj feem xyuam.
(I) Kev ua haujlwm axis qhov chaw, (II) xuas tus punch tus lej PIN, (III) Central laser laser
Busbar tshuab khoov tuag
Busbar xuas nrig ntaus thiab dabtsi yog khoov tshuab Busbar ua, peb lub tuam txhab tshwj xeeb hauv kev ua lag luam kev ua lag luam busizing. Peb tau cog lus rau khoov rau khoov tuag rau kev tuag raws li cov neeg siv khoom kom tau raws li cov neeg siv khoom sib txawv thiab kev xav tau tshwj xeeb.
Ntsug khoov tuag:Lawv tau tsim los ua kom tiav txoj kev ntsug ntawm 90 degrees lossis cov ces kaum tshwj xeeb ntawm busebars. Hom kev tuag no yog tsim nyog rau kev siv cov chaw tsheb npav uas yuav tsum tau teem qhov chaw siv hluav taws xob kom ntseeg tau qhov chaw siv hluav taws xob kom ntseeg tau.
Tiaj Dabtsi Yog Khoov Dies:Lawv tsim los ua kom ncaj ncaj rau hauv busebars. Lawv tau dav siv hauv cov xwm txheej uas cov busbars yuav tsum tau pw hauv lub voj voos, muab cov kev sib txuas hluav taws xob.
Embossing tuag:Muaj txoj haujlwm ntawm cov qauv tshwj xeeb lossis cov kab ntawv ntawm cov chaw ntawm lub busbar. Qhov no tsis tsuas yog txhim kho lub loog, tab sis kuj tseem txhim kho nws cov cuab yeej siv ntau yam hauv qee kis, xws li ua rau muaj zog ntxiv hauv qee thaj chaw.
U-Zoo Li Dabtsi Yog yog khoov tuag:Siv los tsim U-puab khoov hauv Busebars. U-zoo li cov tsheb npav feem ntau siv nyob rau hauv kev siv hluav taws xob sib txuas yuav tsum tau yooj yim rau kev nkag tau lossis hloov kho yav tom ntej, xws li hauv Modular hluav taws xob.
Hauv cov ntsiab lus, tsis muaj teeb meem dab tsi los yog khoov tshwj xeeb yog, txawm tias nws yog kev tsim khoom, sib dhos, ua kom muaj kev sib xyaw ua ke rau cov neeg siv hluav taws xob.
