Servo Tsav Tsis Siv Neeg Stopper Busbar Ua Tshuab
Cov khoom muaj peb qhov chaw ua haujlwm rau Punching, shearing, thiab dabtsi yog khoov, thiab yog tsim los nrog peb qhov kev ywj pheej Hydraulic Systems. Punching, shearing, thiab dabtsi yog khoov chaw tuaj yeem ua haujlwm ib txhij.
Hauj lwm lawm
Product Description

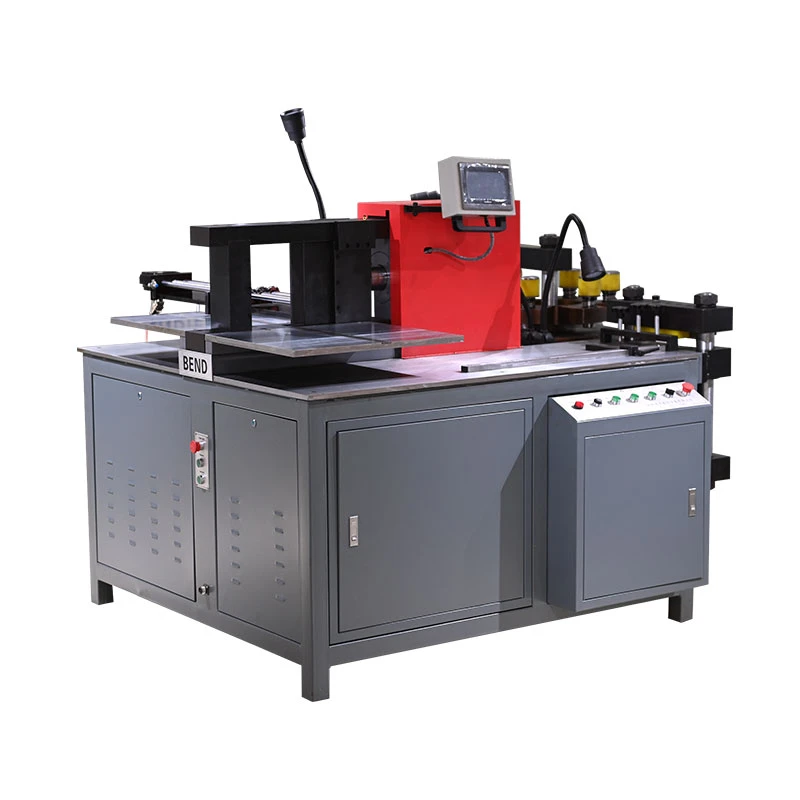

Servo Tsav Tsis Siv Neeg Stopper Busbar Ua Tshuab
503ESK-P Cov khoom lag luam muaj peb qhov chaw ua haujlwm rau kev xuas nrig ntaus, shearing, thiab khoov,
thiab yog tsim los nrog peb ywj siab hydraulic systems. Punching, shearing, thiab
khoov chaw nres tsheb tuaj yeem ua haujlwm ib txhij.
(1) Chaw nres tsheb xuas nrig ntaus tswj cov xuas nrig ntaus los ntawm servo motors thiab PLC,
enabling nruam positioning thiab xuas nrig ntaus ntawm ntxeem tau workpieces, uas yog npaum thiab raug.
(2) Lub chaw txiav txiav txiav txiav txiav qhov loj me los ntawm servo motors thiab PLC,
ua kom yooj yim thiab siv tau zoo.
(3) Lub chaw nres tsheb dabtsi yog khoov tswj qhov khoov ntev los ntawm servo lub cev muaj zog, tuaj yeem nrhiav
cov khoom thaiv txoj haujlwm, thiab tuaj yeem ua tiav qhov kev pab cuam los nrhiav ntau lub kaum ntse ntse thiab khoov txoj haujlwm.
Technical Parameters
|
Kev ua haujlwm |
Chav tsev |
503 SIB-P |
|
Punching ua |
Maximum xuas nrig ntaus quab yuam (KN) |
500 |
|
Punching ntau yam (㎜) |
ф 4.3~ф 36 |
|
|
Qhov siab tshaj plaws thickness (mm) |
16 |
|
|
Qhov siab tshaj plaws (mm) |
260 |
|
|
Shear processing |
Maximum shear force (KN) |
800 |
|
Qhov siab tshaj plaws thickness (mm) |
16 |
|
|
Qhov siab tshaj plaws thickness (mm) |
260 |
|
|
Khoov kev ua haujlwm |
Maximum dabtsi yog khoov quab yuam (KN) |
500 |
|
Qhov siab tshaj plaws (mm) |
260 |
|
|
Qhov siab tshaj plaws thickness (mm) |
16 |
|
|
Tag nrho qhov ntev |
mm |
1980*1710*1670 |
|
Motor Pov |
KW |
3 x 5.5 KW |
|
tshuab hnyav |
KG |
2 350 KG |
|
kev xav tau ntawm lub zog |
V/F |
380V, 220V, 415V Customizable |
|
Tus naj npawb ntawm servos |
teeb |
4 |
|
Punching Y-axis zoo stroke |
mm |
1200 hli |
|
Punching X-axis zoo mus ncig |
mm |
350 hli |
|
Shear X-axis ua haujlwm tau zoo |
mm |
1200 hli |
|
Khoov nres stroke |
mm |
1200 hli |
Khoom Paub meej
Txais servo nres cov khoom tswj qhov system, muab faib ua:
txiav hom,hom punching, thiab khoov hom
▶ Txiav hom asshow nyob rau hauv daim duab:
(1) Teem qhov ntev tib yam rau txiav ntau daim
(2) Teem qhov ntev sib txawv rau txiav ntau daim thiab ib qho ntawm qhov ntev sib txawv.
Cov punching modeis qhia hauv daim duab:
(1) Teem ntau yam tsis xwm yeem punchingholes nrog sib txawv coordinatesand sau rau hauv cov kev tswj ncaj qha
(2) Teem ntau hom qauv: 1 qhov.2 qhov, 4 qhov, thiab lwm yam. Nws yog qhov yooj yim thiab siv tau ncaj qhatus qauv.
Txoj kev khoov modeis qhia hauv daim duab:
(1) Tus neeg siv interface yog intuitive thiab yooj yim to taub.
(2) Kev ua haujlwm ruaj khov thiab kev ua haujlwm yooj yim
(3) High bending precision thiab ua haujlwm zoo repeatability
Khoom nta
Txiav chaw nres tsheb:
Ob chav kem shear qauv, tiaj tus seem, tsis muaj pov tseg, tsis muaj burrsno tsoo cov ces kaum. Tsis muaj burrs,
tsis muaj cov ces kaum.
Punching chaw nres tsheb:
Nws yog 6-hom turntable, ua los ntawm cov hlau cam khwb cia, uas tsis tas yuav hloov pwm,
txo qis kev ua haujlwm tsis zoo vim yog cov pwm hloov ntau zaus, thiab txo qis qhov kev puas tsuaj ntawm pwm.
Lub carousel yog ib feem tseem ceeb, uas ua kom muaj kev sib haum xeeb ntawm sab sauv thiab qis
pwm thiab txhim kho cov concentricity ntawm cov pwm, thiab kev pab cuam lub neej ntawm cov pwm yog
zoo heevtxhim kho.

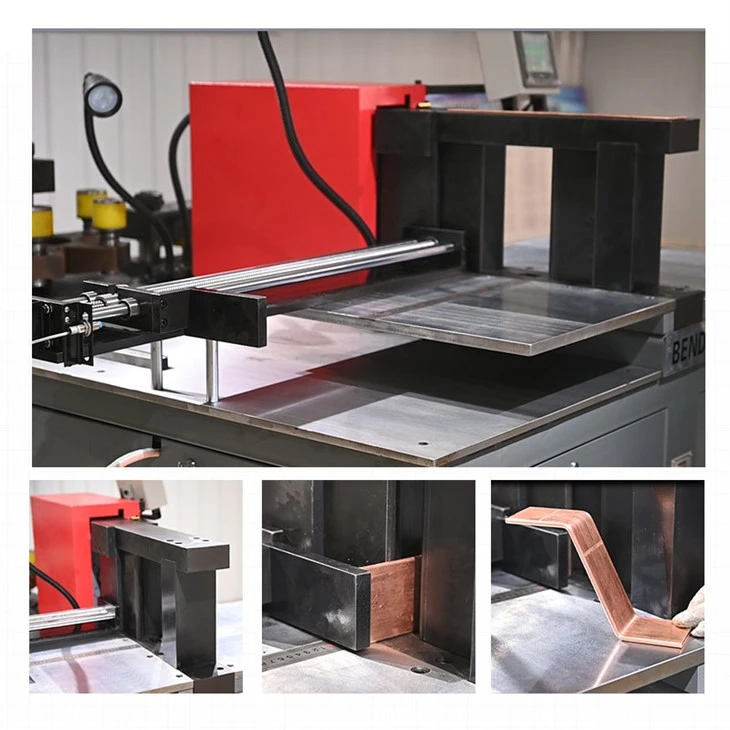

Bending chaw nres tsheb:
Lub kaw bending qauv ua rau nws zoo ib yam li thaum ua tiav ca dabtsi yog khoov thiab embossing.
Zoo heev txhim kho therepeat positioning raug nyob rau hauv loj ntau lawm. Nws kuj tseem siv ob txheej txheej ua haujlwm
rooj, uas paub txog qhov tseeb ntawm peb qhov chaw ua haujlwm ua haujlwm tib lub sijhawm yam tsis muaj kev cuam tshuam
ib leeg.
PLC tswj:
Txais yuav ua tiav Siemens suav system, CNC tswj tau ua tiav los ntawm kev koom tes
ntawm PLC thiab displacementsensors, ua bending ntau leej. Cov khoom siv automatically
xam qhov ntev txiav, khoov lub kaum sab xis, thiab khoov taw tes, ua rau kev ua haujlwm yooj yim
thiab siv tau yooj yim.
Qauv qauv
Khoom siv
Lub tshuab busbar feem ntau yog tsim rau kev tsim khoom lag luam ntawm qhov siab thiab qis voltage
switchgearthiab transformers, thiab yog siv rau ntxiv specifications ntawm tooj liab thiab txhuas busbar.
2. Koj lub sijhawm xa khoom yog dab tsi?
Hauv 5 hnub ua haujlwm tom qab koj tso nyiaj.
3. Koj lub hwj chim yog dab tsi?
Peb tuaj yeem kho nws raws li koj lub teb chaws fais fab mov.
4. Koj qhov kev txiav txim Min yog dab tsi?
Ib txheej.
5. Puas yog tag nrho cov ntawv sau thiab cov lus qhia ntawm lub tshuab ua lus Askiv?
Yog lawm. Cov ntawv sau rau ntawm lub tshuab thiab phau ntawv phau ntawv yog Sau ua lus Askiv.
6. Dab tsi lwm yam busbar ua cov cav tov uas peb muab?
Peb muab koj ntau txoj kev xaiv: Busbar winding tshuab, busbar chamfering tshuab,
