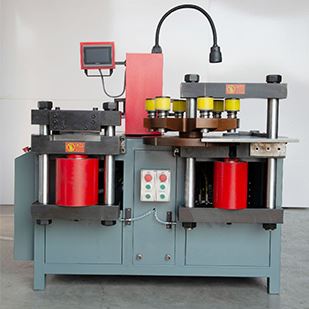

Tsheb bender tshuab

DSMX -503 ayk (peb lub twj, rau-txoj haujlwm tig) muaj peb qhov chaw ua haujlwm uas tuaj yeem ua haujlwm rau ib txhij: xuas Nws cov txheej txheem muaj los ntawm Siemens PLC thiab feem ntau yog siv los ua tooj liab thiab Aluminium busbars ntawm cov sib txawv. Thaum lub sijhawm ua haujlwm, koj tsuas yog xav xaiv cov chaw ua haujlwm sib xws kom ua ntau yam ntawm tooj liab thiab Aluminium busbars.

Xa kev nug

Hauj lwm lawm

Cov khoom lag luam

DSMX -503 elsk yog lub tsheb npav bar bender tshuab, nruab nrog peb zaug kev sib tw rau punching, txiav thiab khoov, thiab tuaj yeem ua haujlwm ib txhij. Nws cov haujlwm cnc ua haujlwm yog qhov tseeb, thiab nrog rau-txoj haujlwm turntable, nws yog qhov ua tau zoo dua. Cov tsev nyob ua hauj lwm cov cuab yeej nyiaj tau los khoov los ua kom muaj kev ua tiav thiab ruaj khov.
Cov khoom siv muab ob hom kev xaiv zoo nkauj ntawm Grey thiab xiav. Yog tias koj muaj lwm cov kev cai xim, peb kuj txhawb kev customization. Txawm hais tias nyob rau hauv lub zog thiab kev tsim kho cov khoom siv hluav taws xob xws li cov khoom siv hluav taws xob zoo siab thiab rov qab siv hluav taws xob zoo siab thiab rov qab ua haujlwm rau txhim kho kev ua haujlwm zoo.

Yooj yim

1. Sau pawg:
Lub zog tshaj plaws punching:500kn,

Punching lub taub (mm): Φ4.3-36
Ntau tshaj plaws thickness:16 hli,

Qhov Dav Tshaj Plaws:260 hli
2. Shearing chav ntsuas:
Ntau kawg shearing quab yuam:800kn,

Qhov siab tshaj plaws shearing tuab:16 hli
Qhov siab tshaj plaws shearing dav: 260mm
3. Dab tsi yog tsev nyob:
Qhov ntau tshaj plaws khoov dag zog:500KS

Dabtsi yog khoov dav:260 hli
Dabtsi yog khoov tuab:16 hli
4.Tshuab qhov loj me:1925*1560*1490
5.Tshuab hnyav:2000kg

Khoom Paub meej

Lub npav Bender tshuab yog tsuas yog siv los ntawm lub system hydraulic thiab siv ntau yam kev tuag thiab cutters los ua cov busbar. Piv txwv li, thaum shearing, cov kab ke hydraulic drives lub tshuab txiav shearing txav nce thiab txo tus busbar; Thaum xuas nrig ntaus, lub zog hydraulic ua rau cov punch punch ib lub qhov ntawm lub busbar; Thaum khoov, lub hydraulic ntaus ntawv thawb lub busbar rau ntawm txoj kev tuag mus khoov.

1.Txoj Kev Tswj Xyuas Lub thawv

Lub system siv Siemens plc, schneider tag nrho cov teeb tsa hluav taws xob, nruab nrog relays, muaj kev tiv thaiv kev puas tsuaj rau cov cuab yeej hluav taws xob

Nplooj ntawv 2.

Chav tsev shearing yog ua los ntawm cam khwb cia hlau thiab muaj qhov tuab ntawm nruab nrab ntawm kab sib chaws, uas yog ntau ruaj khov. Cov riam shearing yog siv, thiab shearing ntug yog du, tsis muaj kev sib tsoo thiab zoo nkauj nyob rau hauv tsos.

Tshum

Cov txheej txheem xuas nrig ntaus tus hniav rau-tuag kev sib xyaw ua ke

Dabtsi yog khoov

Lub tshuab twg yog kev ua haujlwm ywj siab ua haujlwm ua haujlwm ywj pheej, raug kaw puas muaj qhov ntsuas siab dua, kov tshuaj ntsuam kev tswj, thiab ua nrawm nrawm.

Txhua koog pwm

Punching tuag:Tuaj yeem punch tawm ntau yam kev qhia tshwj xeeb ntawm qhov xws li cov qhov thiab duav-lub qhov.

Punching die

Dabtsi yog khoov tuag:tuaj yeem paub ntau yam kev sib tw xws li khoov khoov, ntsug xyev, pob zeb, sib ntswg, thiab cov qauv tshwj xeeb tuaj yeem raug kho tau.

Bending mold
