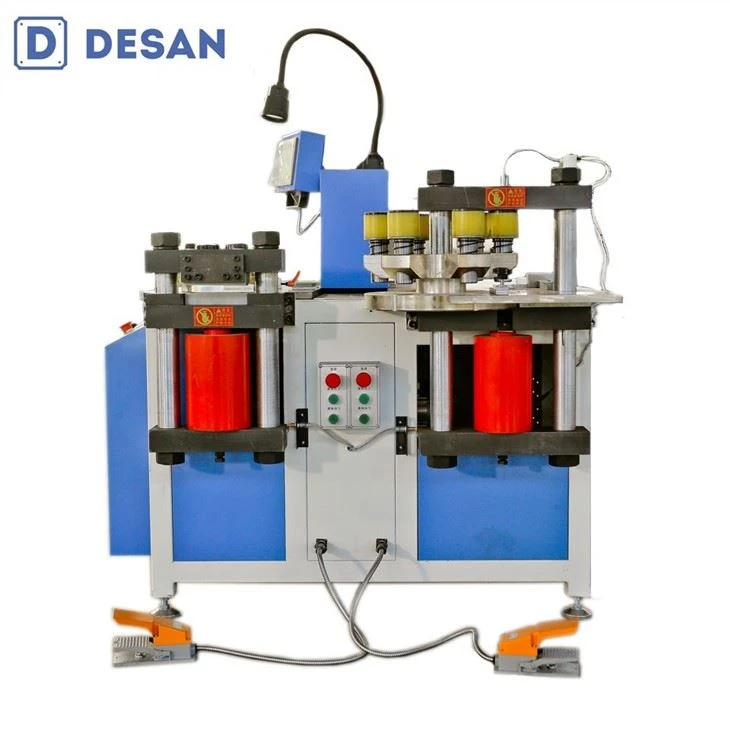

Hydraulic Multifunctional Busbar Ua Tshuab

DESAN CNC Equipment Co., Ltd.

DS -303SK-B

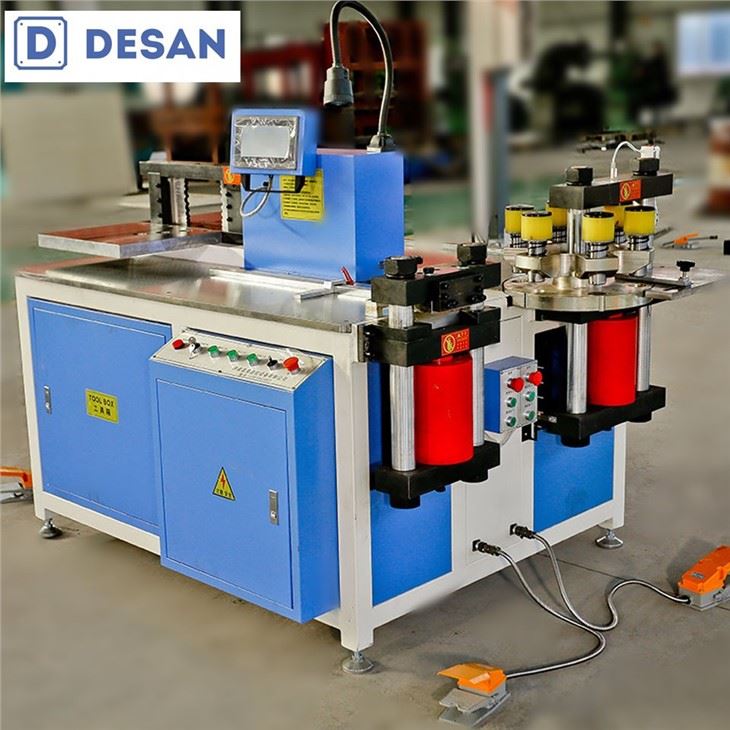

Peb lub tshuab BUSBAR muaj peb qhov chaw nres tsheb:xuas nrig ntaus, TxiavthiabKhoov. Nws tuaj yeem ua tiav rautoojthiabaluminium. Peb lub chaw nres tsheb tuaj yeem ua haujlwm tib lub sijhawm yog li nws yuavtxuag koj lub sijhawmthiabtxhim kho koj txoj haujlwm ua haujlwm.

Muaj nuj nqi

1. xuas nrig ntaus

▶Rau- tuag tig- phaj qauv ua rau foob qhov tuag saum toj thiab qis tuag ib txwm nyob hauv nruab nrab.

▶Six Punching dies can punch 6 different kinds of holes so you don't have to replace the dies frequently.

▶Electroplating technology which is not easy to be rust.

2. Txiav

▶Peb siv ntse shearing. Yog li ntawd lub interface yog tiag tiag tiaj tus tsis muaj droops burrs los yog tej yam pov tseg.

▶Ob hom siab sib txawv kom paub tseeb tias tsis muaj lub kaum sab xis.

▶Ko taw hloov thiab nias khawm.

3. Khoov

Peb lub kaum sab xis ntawm dabtsi yog khoov chaw nres tsheb yog tswj los ntawm kev koom tes ntawm PLC thiab hloov chaw sensor. Nws kuj muaj kev ua haujlwm ntawm kev nco thiab kev ua yuam kev uas ua kom qhov tseeb thiab lub kaum sab xis ntawm kev khoov.

Qhov zoo ntawm peb cov chaw nres tsheb bending

▶ PLC system can automatically generate and process data according to the thickness and curvature of the material.▶ It can supplement and reuse the field processing data at any time.▶ The display screen adopts the color touch screen mode, which can display and operate the data.▶According to the actual operation, the adjustment of elastic compensation and holding time can be set to ensure that the angle is more accurate after processing.▶ The system also can set parameters of customized bending die to meet the needs of customers.

Product Advantage

▶Punching, blending thiab cutting stations yog tag nrho cov nruab nrog ntsuas, yog li koj yuav yooj yim dua thiab sai dua los tsim cov khoom.▶Rau ob txhais ceg ntawm peb lub tshuab muaj leveling pads yog li nws yuav haum rau txhua yam ntawm lub Hoobkas pem teb.▶Peb qhov chaw txiav yog ruaj khov dua thiab yuav txiav cov txiav tsis muaj burr.▶Peb tsis tsuas yog khawm xwb tab sis kuj txhais ko taw tswj hom uas txhais tau tias nws yuav yooj yim dua li ua ntej.

Technical Parameters

Muaj nuj nqi	Yam khoom			DS -303SK-B
xuas nrig ntaus	Max. Punching Force			300 KN
	Punching Txoj kab uas hla			ф4.3mm-ф30mm
	Max. Thickness			15mm
	Max. Dav			160mm
Txiav	Max. Txiav quab yuam			500KN
	Max. Shearing Thickness			15mm
	Max. Shearing Dav			160mm
Khoov	Kab rov tav Bending		Max. Bending Force	300 KN
			Max. Thickness	15mm
			Max. Dav	160mm
	Vertical Bending		Max. Bending Force	300 KN
			Max. tuabess	10 hli
			Max. Dav	100 hli
Tawm Dimension	MM			18901350 1400
Hwj chim	KW			34 KW
Qhov hnyav	KG			1300
Hais txog CNC	We use Siemens PLC control which you can just enter the angle. The bending precision is ±1 degree and repeat bending precision ±0.5 degree .Three stations can be work at the same time. You also can only enter item's height ad width to produce the item you need.(as Z type blending)

Qauv Qhia

Tuam txhab Profile

DESAN CNC Equipment Co., Ltd.

Peb muaj ntau tshaj 20 xyoo Busbar Machine Experience! Nrog rau cov neeg siv khoom zoo thiab cov khoom zoo.
