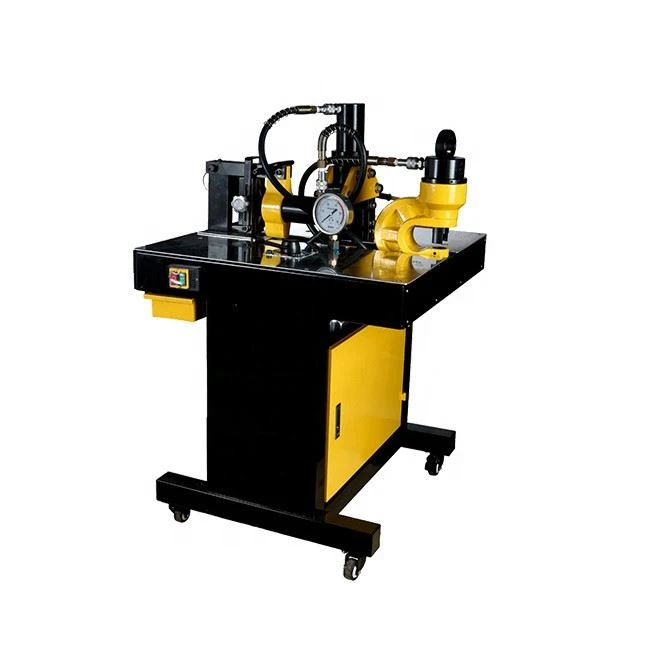

Portable Copper Aluminium Busbar Dabtsi Yog Khoov Tshuab
Max. Thickness (hli): 12 hli
Max. Dav (hli): 200 hli
Cov Txheej Txheem Tseem Ceeb: Lub Cev Muaj Zog
Muaj nuj nqi: Txiav, Dabtsi Yog Khoov, Xuas Nrig Ntaus
CNC: Li qub
Hauj lwm lawm
Khoom Piav Qhia

Qhov no yog kev sib koom ua ke ntawm ntau lub luag haujlwm lub cev ntawm kev tshaj lij, zoo tshaj plaws kom tsis txhob txiav txim siab tib neeg pov tseg, uas yog, cov sijhawm ua haujlwm hauv lub xeev, zoo ib yam nrog cov txheej txheem kev ua haujlwm rau cov neeg ua haujlwm koom nrog, ua rau muaj txiaj ntsig zoo, ua haujlwm zoo tshaj plaws ; daim ntawv, tsos, yooj yim txav cov xim pleev xim thiab kho xeb los ntawm phosphoric acid tawv nqaij pwm, hnav tsis kam cuam tshuam.
Peb txoj hauj lwm valve qhia qhov tseeb thiab ua haujlwm yooj yim hydraulic twj nrog hydraulic rooj qhia pom kev ua haujlwm siab kom tsis txhob muaj ntau tshaj.
Daim ntawv thov
Tus txheej txheem no tsim nyog rau ua lub txee hluav taws xob loj, faib lub zog faib khoom, hloov cov txee thiab hloov lub zog thiab faib cov khoom siv tsim kho vaj tsev siv. Tsim nyog rau kev xa tawm thiab faib khoom hauv lub rooj cob qhia loj thiab chaw ua haujlwm, kev tsim kho, thiab lub zog faib khoom faib khoom thiab hloov khoom txee, thiab lwm yam.
Parameter kev
Parameter lub npe | DSZ-150 (hom ua ke) | DSZ-200 (hom ua ke) |
Muaj nuj nqi | Dabtsi yog khoov, txiav, xuas nrig ntaus | Dabtsi yog khoov, txiav, xuas nrig ntaus |
Pab txhawb | 20T | 20T |
Hlau phaj dav | 150 hli | 200 hli |
Qhov hnyav | 169KG | 169KG |
Pawg tuab | Xuas nrig/khoov 12 hli, txiav 10 hli | Xuas nrig/khoov 12 hli, txiav 10 hli |
Pwm teeb tsa | Dabtsi yog khoov pwm: 1 khub, txiav pwm: 1 khub | Dabtsi yog khoov pwm: 1 khub, txiav pwm: 1 khub |
Xuas nrig tuag | φ8.5, φ10.5, φ13.5, φ17mm, φ21.5mm txhua txheej | φ8.5, φ10.5, φ13.5, φ17mm, φ21.5mm txhua txheej |
Pob Loj | 780*780*1240mm | 780*780*1240mm |
Qhov hnyav tag nrho | 189kg ua | 189kg ua |
Nqe tuaj txog, ntim lub thawv ntoo | Kev ntim khoom | Kev ntim khoom |
Hnub xa khoom | 15 hnub ua haujlwm | 15 hnub ua haujlwm |
![]() | ![]() | ![]() |
Peb Qhov Kev Pabcuam
1. Koj cov nqe lus them nqi yog dab tsi?
40% T/T tso nyiaj, 60% tshuav nyiaj yuav tsum tau them ua ntej thauj khoom tom qab npaj tau zoo.
2. Koj lub hwj huam mov yog dab tsi?
Nws yuav vam khom koj lub hwj chim hauv cheeb tsam thiab peb yuav kho rau koj.
3. Koj qhov kev txiav txim yam tsawg kawg nkaus yog dab tsi?
Ib txheej.
4. Dab tsi ntxiv lub tshuab busbar koj tuaj yeem muab tau?
Qhov tseeb peb kuj muaj busbar dabtsi yog khoov/txiav/xuas nrig ntaus tshuab, portable busbar tshuab, tsis siv neeg busbar txiav xuas nrig ntaus tshuab, hlau coiling tshuab, busbar leveling tshuab thiab lwm yam.
5. Koj yuav muab kev txhawb nqa rau peb li cas?
Peb tuaj yeem muab kev pabcuam hauv online. Raws li xwm txheej ntawm COVID-19 peb kuj tuaj yeem xa peb tus kws tshaj lij rau koj lub Hoobkas hauv cheeb tsam los pab koj.
6. Ntev npaum li cas ntawm qhov lav?
Ib xyoos. Tab sis peb tuaj yeem cog lus tias peb yeej' tsis txhim kho tus nqi ntawm ib feem koj xav pauv tom qab ib xyoos.
7. Koj puas tau tuag ntawm xuas nrig ntaus thiab khoov?
Tau kawg! Yog tias koj xav tau kev kho lub cev tuag thov koj xav tiv tauj peb. Tsis tsuas yog peb lub tshuab tab sis tib lub tshuab peb kuj tuaj yeem muab cov neeg tuag.
8. Koj puas tuaj yeem tsim kho?
Yog lawm Ua rau peb yog lub Hoobkas ncaj qha muab khoom yog li peb tuaj yeem pauv cov xim thiab lub logo rau cov ntawv koj xav tau.
Cim npe nrov: portable tooj liab aluminium busbar dabtsi yog khoov tshuab, cov chaw muag khoom, chaw tsim khoom, thawj tus nqi, OEM Hoobkas, muag
