3 Hauv 1 Tsis Siv Neeg Positioning Cnc Copper Busbar Tshuab
Lub npe khoom: Cnc Tsis Siv Neeg Positioning Busbar Tshuab, Plaub servo lub cev muaj zog rau cov khoom thaiv, peb lub twj tso kua mis, thiab peb qhov chaw ua haujlwm, Nruab nrog lub tshuab tsis siv neeg CNC rau xuas nrig ntaus, shearing, thiab khoov peb qhov chaw ua haujlwm, Voltage: 380V / 220V / 415V (Customizable) , Lub cev muaj zog 3 X 5.5 KW, siab kawg shear force (KN): 800
Hauj lwm lawm
Product Description
3 Hauv 1 Tsis Siv Neeg Positioning Cnc Copper Busbar Tshuab
Lub tshuab no tau nruab nrog peb qhov chaw ua haujlwm: xuas nrig ntaus, shearing, thiab khoov.
Nws yog tsim los nrog peb txoj kev ywj pheej hydraulic, thiab kev xuas nrig ntaus, shearing, thiab
khoov chaw nres tsheb tuaj yeem ua haujlwm ib txhij.
● Punching hom
● Txiav hom
(1) Teem qhov ntev tib yam los txiav ntau daim
(2) Teeb qhov ntev sib txawv los txiav ntau daim thiab ib daim ntawm qhov ntev sib txawv.
● Khoov hom
(1) Tus neeg siv interface yog intuitive thiab yooj yim to taub;
(2) Kev ua haujlwm ruaj khov thiab ua haujlwm yooj yim; (3) High bending raug thiab zoo rov ua haujlwm ntawm kev ua haujlwm; Qhov system no yooj yim rau kev khiav lag luam, intuitive, thiab muaj lub cim xeeb ua haujlwm rau txhua qhov tsis muaj. Tsuas yog ua raws li cov lus qhia kom raug kom yooj yim ua tiav ntawm ntau yam workpieces.
Technical Parameters
|
Kev ua haujlwm
|
Chav tsev
|
DSCNC{0}}ZPS
|
|
Punching ua |
Maximum xuas nrig ntaus quab yuam (KN)
|
500
|
|
Punching ntau yam (㎜)
|
ф 4.3~ф 36
|
|
|
Qhov siab tshaj plaws thickness (mm)
|
16
|
|
|
Qhov siab tshaj plaws (mm)
|
260
|
|
|
Shear processing |
Maximum shear force (KN)
|
800
|
|
Qhov siab tshaj plaws thickness (mm)
|
16
|
|
|
Qhov siab tshaj plaws (mm)
|
260
|
|
|
Khoov kev ua haujlwm |
Maximum dabtsi yog khoov quab yuam (KN)
|
500
|
|
Qhov siab tshaj plaws (mm)
|
260
|
|
|
Qhov siab tshaj plaws thickness (mm)
|
16
|
|
|
Tag nrho qhov ntev
|
mm
|
2100*1710*1670
|
|
Motor Pov
|
KW
|
3 x 5.5 KW
|
|
tshuab hnyav
|
KG
|
2 350 KG
|
|
lub zog xav tau
|
V/F
|
380V, 220V, 415V Customizable
|
|
Tus naj npawb ntawm servos
|
teeb
|
4
|
|
Punching Y-axis zoo stroke
|
mm
|
1200 hli
|
|
Punching X-axis zoo mus ncig
|
mm
|
2200 hli
|
|
Shear X-axis ua haujlwm tau zoo
|
mm
|
1200 hli
|
|
Khoov nres stroke
|
mm
|
1000 hli
|
Khoom Paub meej

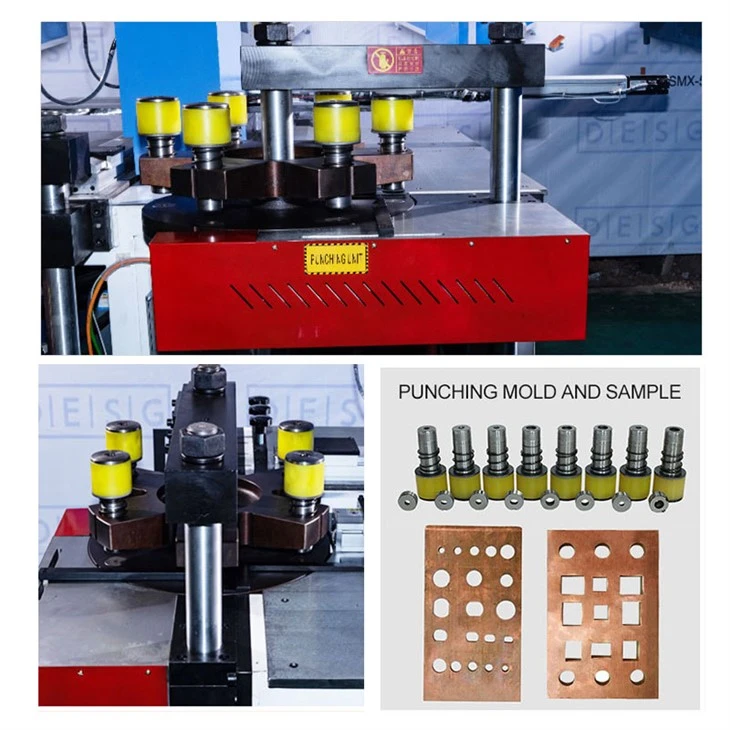

★ Punching unit
① Kev siv rau lub pwm sib xyaw ua ke turntable (cov pwm installation qhov ua tiav
los ntawm CNC machining chaw nrog cov neeg siab).
② Thaum siv, tsis tas yuav nquag hloov pwm, yog li txhim kho kev ua haujlwm.
③ Tsis muaj indentations ntawm qhov chaw ntawm lub workpiece.
④ Nruab nrog CNC servo system rau qhov chaw tsis siv neeg, uas tuaj yeem kov
Teem qhov yuav tsum tau drilling nrug thiab suab ntawm qhov screen, thiab txiav kho qhov
Y-axis thiab X-axis txoj haujlwm kom ua tiav qhov kev ua haujlwm siab zoo yam tsis tas yuav tsum tau kos npe.
⑤ Lub xuas nrig ntaus CNC kov lub vijtsam tuaj yeem khaws ntau yam ntawm cov punching loj,
thiab lub kaw lus tuaj yeem khaws kho qhov punching qhov Loj tsis muaj. Lwm lub sij hawm tib yam
workpiece yog ua tiav, nws tuaj yeem raug hu ncaj qha yam tsis muaj kev kho ntxiv.
★ Txiav chav tsev
① Kev siv ob sab thiab ob chav hniav shear qauv.
② Cov riam sab sauv thiab sab qis yog ntsia vertically thiab tib lub sijhawm kom ntseeg tau tias cov
txiav ntug yog tiaj thiab tsis muaj burrs Tsis muaj pov tseg.
③ Lub chaw txiav txiav txiav txiav txiav qhov loj me los ntawm servo
motors thiab PLC, ua kom yooj yim thiab ua haujlwm zoo.
★ Khoov chav tsev
① Ua tiav kab rov tav thiab ntsug dabtsi yog khoov los ntawm kev hloov pwm.
① Ua tiav kab rov tav thiab ntsug dabtsi yog khoov los ntawm kev hloov pwm.
② Nkag mus rau lub kaum sab xis thiab lub thickness ntawm tooj liab thiab txhuas tuav rau
ua lub kaum sab xis khoov.
③ Txais Siemens PLC tswj qhov system, nrog siab dabtsi yog khoov raug.
④ Sab laug ntawm qhov chaw nres tsheb dabtsi yog khoov nrog CNC servo system
rau qhov chaw tsis siv neeg (yeem raws li qhov xav tau). Los ntawm kev teeb tsa
dabtsi yog khoov nrug thiab lub kaum sab xis los ntawm lub vijtsam kov, X-axis txiav
kho qhov chaw Y-axis rau CNC hydraulic tswj ntawm lub kaum sab xis,
ua tiav high-precision dabtsi yog khoov yam tsis tas yuav tsum tau kos npe.
⑤ Lub dabtsi yog khoov CNC kov npo tuaj yeem khaws ntau qhov kev khoov loj
parameters, thiab lub kaw lus tuaj yeem khaws cov kev hloov kho kho qhov loj me tsis
rau kev siv tom ntej yam tsis muaj kev kho ntxiv.
★ PLC tswj
① Txais yuav ua tiav Siemens suav system, CNC tswj tau ua tiav los ntawm
① Txais yuav ua tiav Siemens suav system, CNC tswj tau ua tiav los ntawm
kev koom tes ntawm PLC thiab hloov chaw sensors, ua kom khoov ntau meej.
Cov cuab yeej txiav txim siab txiav qhov ntev, khoov lub kaum sab xis, thiab khoov
point, ua.
Cov qauv khoom
Lub luag haujlwm tseem ceeb yog ua cov tooj liab thiab txhuas busbar nyob rau hauv ntau yam specifications.
Los ntawm cov chaw ua haujlwm txheeb ze, nws tuaj yeem ua alkins ntawm kev ua rau tooj liab thiab txhuas busbar
sai thiab yooj yim, xws li shearing / txiav punching (lub qhov thiab oblong qhov),
tiaj / kab rov tav dabtsi yog khoov, ntsug dabtsi yog khoov U-bending, embossing tiaj nias, twisting
cable connectorprocessing thiab lwm yam.Multifunctional Cnc Busbar Processing Tshuab Busbar
Tshuab dabtsi yog khoov.
3 Hauv 1 Tsis Siv Neeg Positioning Cnc Copper Busbar Tshuab
Khoom siv tau
Peb-hauv-ib qho khoom siv tooj liab busbar ua tshuab siv rau qhov hloov pauv no
yog dav siv nyob rau hauv kev tsim ntawm switchgear, hluav taws xob tswj vaj huam sib luag, siab thiab tsawg voltage
switchgear, substations, voltage transformers, hluav taws xob keyboards, shipbuilding, hluav taws xob elevator
kev tsim khoom, hluav taws xob txee tsim khoom, thiab kev faib khoom tsim khoom tsim khoom.
Tuam txhab Profile
Jinan Deshang CNC Equipment Co., Ltd. yog lub chaw tsim khoom ntawm busbar ua tshuab,
tooj liab thiab txhuas kab ua cov cav tov, thiab cov khoom siv busway ua. Nws muaj 15 xyoos
ntau lawm kev, paub tab technology, siab tso zis, ceev tus me nyuam, thiab guaranteed tom qab-muag kev pab cuam.
Peb cov khoom muaj ISO9001 thiab CE daim ntawv pov thawj zoo thiab SGS ntawv pov thawj los coj cov neeg siv khoom xaj.
Tib lub sijhawm, DESG kuj lees txais OEM lossis ODM xaj, qhov tsawg kawg nkaus txiav txim kom muaj nuj nqis yog ib txheej. DESG's
Cov khoom lag luam muaj xws li: peb-hauv-ib lub tshuab ua haujlwm busbar, mobile busbar ua tshuab,
cov cuab yeej busbar thiab lwm yam khoom siv, ua kom yooj yim rau cov neeg siv xaiv lub tshuab tsim nyog tshaj plaws
rau lawv txoj haujlwm, yog li peb cov khoom siv tuaj yeem ua tau raws li cov neeg siv khoom xav tau rau kev tsim khoom txhuas thiab Txhua
daim ntawv thov scenarios ntawm tooj liab busbars yuav tsum tau. Machining raug yog tus yam ntxwv tseem ceeb tshaj plaws
ntawm cov cuab yeej siv, thiab DESG cov cav tov yog qhov tseeb heev hauv kev txiav, xuas nrig ntaus thiab tshwj xeeb yog dabtsi yog khoov, uas yog raws nraim lub ntsiab ntawm precision uas cov neeg siv ntawm hom tshuab no tab tom nrhiav. DESG yog ib lub npe nrov busbar tshuab manufacturers hauv Suav teb. Nws cov khoom siv lub tshuab busbar tau siv dav hauv cov tshuab ua haujlwm busbar, siab thiab qis voltage switchgear, substations, busway, txuas hniav, hluav taws xob hloov, khoom siv sib txuas lus, khoom siv hauv tsev, shipbuilding, chaw ua haujlwm automation khoom, elevator manufacturing, txee tsim thiab lwm yam khoom siv hluav taws xob ua kom tiav. . Tam sim no, DESG cia siab tias yuav ntxiv kev sib koom ua lag luam thiab cov khoom muag, yog li nws cia siab tias yuav tsim kom muaj kev sib raug zoo nrog kev sib raug zoo nrog cov neeg sawv cev uas xav koom nrog. DESG tuaj yeem ua tau raws li qhov xav tau ntawm cov neeg siv khoom thoob ntiaj teb, thiab peb cov kws tshaj lij engineers tuaj yeem muab kev pabcuam rau cov neeg siv khoom txhua lub sijhawm.
Cov khoom ntim
Standard ntshuam thiab export ntoo thawv ntim, dawb los ntawm fumigation thiab xeb tiv thaiv kev kho mob.
3 Hauv 1 Tsis Siv Neeg Positioning Cnc Copper Busbar Tshuab
FAQ
1.Koj cov nqe lus them nqi yog dab tsi?
40% T / T tso nyiaj, 60% tshuav nyiaj them ua ntej thauj khoom tom qab npaj tau zoo.
2. Koj lub sijhawm xa khoom yog dab tsi?
Hauv 15 hnub ua haujlwm tom qab koj tso nyiaj.
3. Koj lub hwj chim yog dab tsi?
Peb tuaj yeem kho nws raws li koj lub teb chaws fais fab mov.
4. Koj qhov kev txiav txim Min yog dab tsi?
Ib txheej.
5. Puas yog tag nrho cov ntawv sau thiab cov lus qhia ntawm lub tshuab ua lus Askiv?
Yog lawm. Cov ntawv sau rau ntawm lub tshuab thiab phau ntawv phau ntawv yog Sau ua lus Askiv.
6. Dab tsi lwm yam busbar ua cov cav tov uas peb muab?
Peb muab koj ntau txoj kev xaiv: Busbar winding tshuab, busbar chamfering tshuab,
tooj liab phaj leveling tshuab, portable busbar ua tshuab, busbar tej cuab yeej,
busbar dabtsi yog khoov cov cuab yeej, busbar xuas nrig ntaus cov cuab yeej, hydraulic twj tso kua mis, tes twj tso kua mis, thiab lwm yam.
