800KN Hydraulic Busbar Ua Khoom Siv Rau Tooj
Busbar Processing Tshuab Punching/bending/Cutting Hydraulic Busbar Processing Equipment Functions Peb lub chaw nres tsheb tuaj yeem ua haujlwm tib lub sijhawm yog li nws yuav txuag koj lub sijhawm thiab txhim kho koj txoj haujlwm ua haujlwm. 1. Chaw Txiav Txim Peb Cov Chaw Txiav Txim txais cov txiab ntse heev. Yog li ntawd, lub interface ntawm ...
Hauj lwm lawm
Busbar Processing Tshuab
Punching / Khoov / Txiav
Hydraulic Busbar Cov Khoom Siv Ua Haujlwm
Muaj nuj nqi
Peb lub chaw nres tsheb tuaj yeem ua haujlwm tib lub sijhawm yog li nws yuav txuag koj lub sijhawm thiab txhim kho koj txoj haujlwm ua haujlwm.
1. Chaw nres tsheb txiav
Peb Cov Chaw Txiav Txim txais cov txiab ntse heev. Yog li lub interface ntawm cov khoom uas ua tiav yog tiaj tus yam tsis muaj droops burr lossis ib qho pov tseg.
Lub thickened cross beam thiab lub tog raj kheej loj kom paub tseeb tias cov chaw nres tsheb no yuav tsis dhau. Nws txhim kho kev ruaj ntseg ntawm lub tshuab.

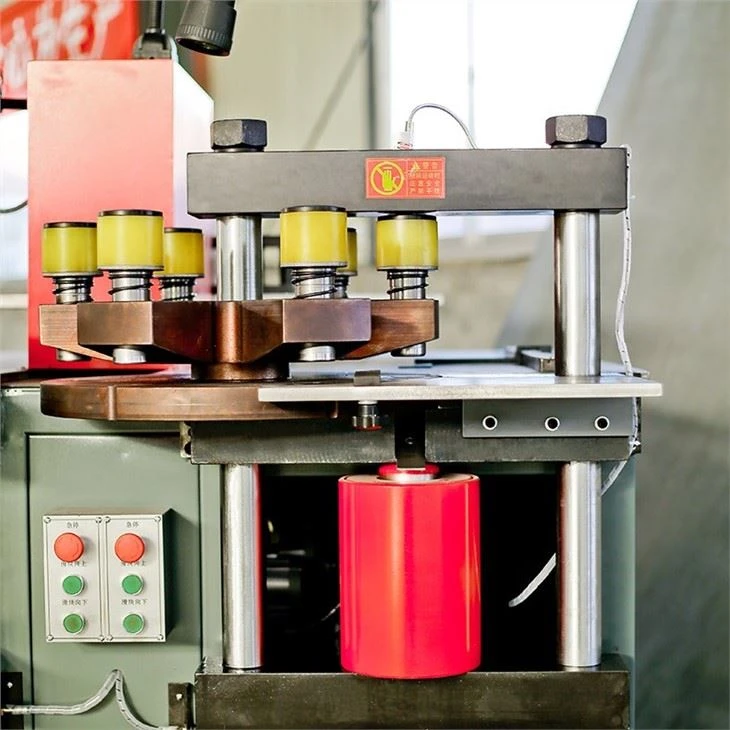

2. Punching chaw nres tsheb
Yooj yim los pauv cov punching tuag
4- qhov turret, 6- qhov turret thiab 8- qhov turret tuaj yeem xaiv tau.
Peb muaj ob-txoj kev positioning rulers, laser teeb thiab txoj hauj lwm koob
Cov duab sib txawv ntawm xuas nrig ntaus tuag tuaj yeem kho tau.
Yooj yim rau kev khiav lag luam.
3. Chaw nres tsheb dabtsi yog khoov
Peb qhov chaw nres tsheb dabtsi yog khoov tau kaw, qhov tso zis taw tes thiab qhov kev ntxhov siab pint txuas nrog lub teeb hlais uas yog 50mm thickness. Lub zog txhua yam muaj zog ntau dua li qhib khoov.
Nws cov kev tswj hwm tseem muaj lub cim xeeb cia thiab kev ua haujlwm yuam kev uas tuaj yeem pab koj txhim kho kev ua haujlwm.
4. Technical Parameter
| Muaj nuj nqi | Cov khoom | DSMX-803ESK-B |
| Punching chaw nres tsheb | Punching Force | 8 00 KN |
| Max dav | 300 hli | |
| Max Thickness | 20 hli | |
| Punching Ntau | ф4.3-ф36㎜ | |
| Chaw nres tsheb txiav | Txiav quab yuam | 8 00 KN |
| Max dav | 300 hli | |
| Max Thickness | 20 hli | |
| Khoov chaw nres tsheb | Bending Force | 8 00 KN |
| Max dav | 300 hli | |
| Max Thickness | 20 hli | |
| Tawm dimension | mm | 2050*1600*1650 |
| Lub cev muaj zog | KW | 3*5.5 |
| Qhov hnyav | Kg | 2300 |
