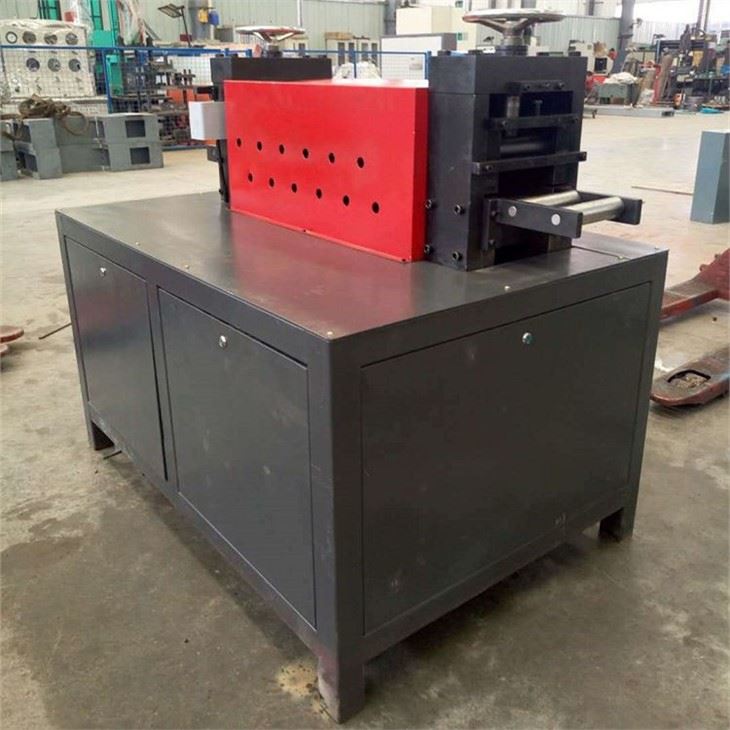

CNC Copper Bar Aluminium Leveling Tshuab
Qhov siab tshaj plaws ua dav: 160-260mm
Ua cov txheej tuab: 4 ~ 12mm
Lub zog: 3KW
Dimension (L*W*H): 1500 × 850 × 1300mm
Ntawv pov thawj: CE /ISO9001
Hauj lwm lawm
Txoj Cai Ua Haujlwm thiab Siv
1) Multi-roller yuam qib kev cai kom ua tiav cov txiaj ntsig zoo ntawm qib.
2) Nrog kev ua haujlwm siab thiab yooj yim rau siv.
Nws tau txais ntau txoj hauv kev yuam cov qib kev cai, uas ua rau cov kab tsis sib xws zoo li tus kab busbar ua kom nyob hauv lub xeev dhau los ntawm kev ua txhaum cai. Thaum cov kab busbar tsis sib xws tau dhau los ntawm kev txav mus los qis dua, cov kev hloov pauv tsis sib xws thiab kev nyuab siab sab hauv yuav raug tshem tawm. Tom qab ntawd lub npav npav tuaj yeem ua qib txaus.
Cov Kev Ntsuas
Yam khoom | DSJP-160 | DSJP-260 |
Khoom siv ntawm busbar | Tooj liab, Txhuas | Tooj liab, Txhuas |
Max.width ntawm kev ua (hli) | 160 | 260 |
Thickness ntau ntawm kev ua (hli) | 4-12 | 4-12 |
Qhov ntau ntawm cov menyuam qib -nce | 5 | 5 |
Tus naj npawb ntawm cov menyuam qib - nqis | 6 | 6 |
Kev sib hloov ceev ntawm cov menyuam axis (RPM) | 34 | 34 |
Qib cov menyuam nrawm (hli/min) | 6500 | 6500 |
Txoj kab uas hla ntawm cov menyuam (hli) | Ø90 | Ø90 |
Worktable qhov siab (hli) | 750 | 750 |
Lub zog ntawm lub cev muaj zog/qhov hluav taws xob (KW/V) | 3.0/380 | 3.0/380 |
Tus qauv nthuav dav L*W*H (hli) | 1500 × 850 × 1300 hli | 1500 × 850 × 1300 hli |
Tshuab hnyav (KG) | 700 | 700 |
Peb Qhov Kev Pabcuam
Q: Yuav ua li cas kom tau txais cov lus hais raug los ntawm peb?
A: Thov muab peb cov ntsiab lus ntawm cov khoom siv, tuab tuab thiab dav dav.
Q: Koj puas tuaj yeem ua kev pabcuam OEM?
A: Yog, peb ua tau.
Q: Dab tsi' tus nqi thauj khoom los ntawm Tuam Tshoj mus rau koj lub tebchaws?
A: Peb muaj tus neeg sawv cev thauj khoom kom ntseeg tau tias nyab xeeb yooj yim thiab sijhawm xa khoom.
Q: Koj puas lees txais LC them nyiaj?
A: TSIS YOG, 40% T/T tso nyiaj, 60% tshuav nyiaj yuav tsum tau them ua ntej thauj khoom tom qab npaj tau zoo.
Q: Yuav ua li cas khiav lub tshuab no?
A: Cov kab yeeb yaj kiab ntawm peb lub hoobkas lossis peb xa koj cov vis dis aus ncaj qha.
Q: Ua li cas txog kev pabcuam commissioning?
A: Peb tuaj yeem muab kev pabcuam ua haujlwm, tus neeg yuav khoom yuav tsum tau them daim pib dav hlau.
Q: Koj puas muaj kev qhia& kev cob qhia?
A: Kev cob qhia ntawm tus xa khoom' tsob ntoo.
Cim npe nrov: CNC tooj liab bar aluminium leveling tshuab, cov chaw muag khoom, chaw tsim khoom, thawj tus nqi, OEM Hoobkas, kev muag khoom
